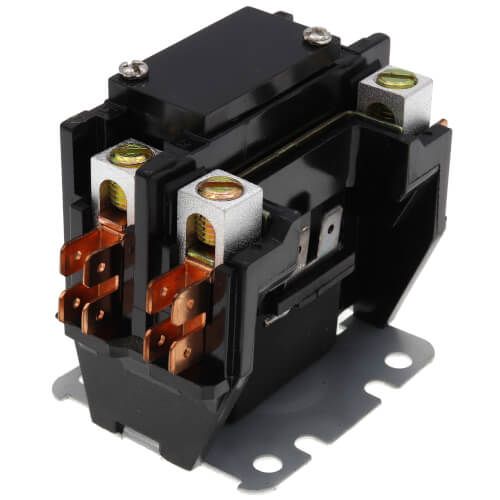

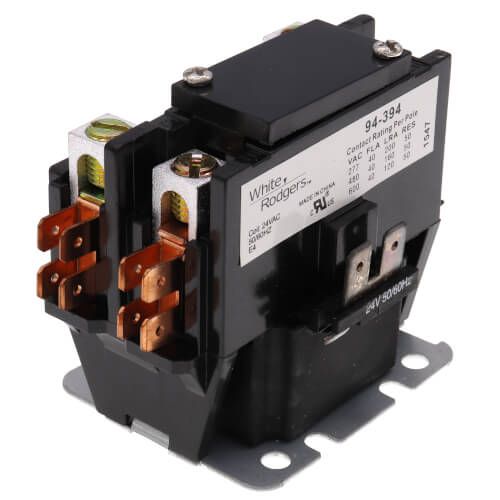

White Rodgers 94-394 - 1 Pole Contactor, 24 VAC Coil, 50/60 Hz, 40 Amp Contacts. Coil Data: 16.5 Ohms DC Resistance, 208 mA
Brand:
SKU
94-394
Application: Air Conditioning
Type: Single Pole Definite Purpose
Voltage: 24v
Amperage: 40
Hertz: 60, 50
Nominal VA: 5
DC Resistance: 16.5 ohms
mA: 208
Electric Connection: 1/4" Quick-Connect Terminals, Screw Terminals
Duty: Continuous
Weight: 7 oz
Temperature Range (F): -40°F to 150°F
