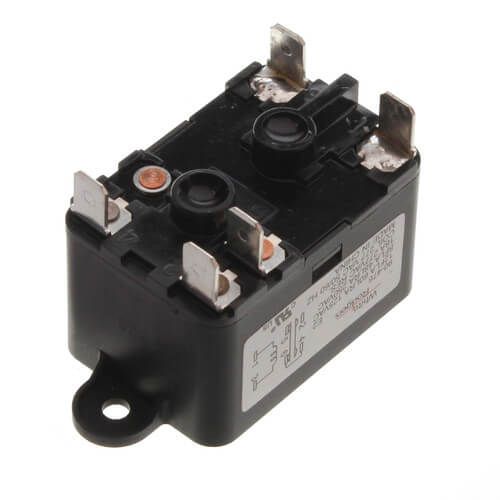

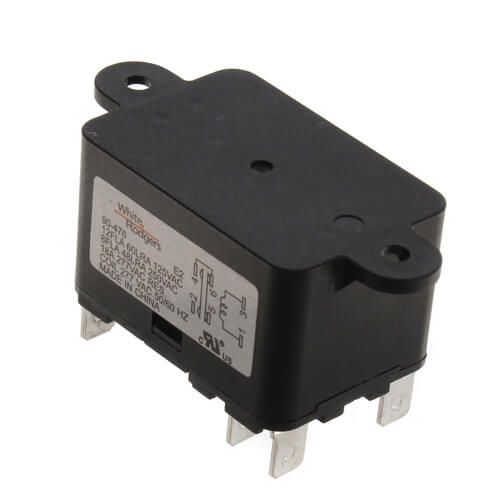

White Rodgers 90-476 - Heavy Duty Enclosed Fan Relay, 277 VAC Coil, 50/60 Hz, SPDT. Coil Data: 10300 Ohms DC Resistance, 10.8 mA (Nominal)
Brand:
SKU
90-476
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPDT
Voltage: 277v
Hertz: 60, 50
DC Resistance: 10300 ohms
Weight: 2.3 oz
mA: 10.8
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
