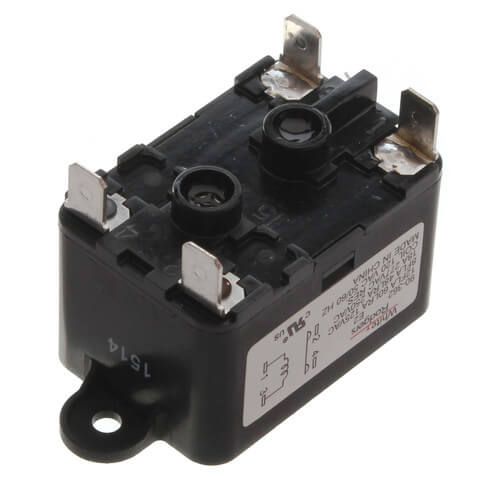

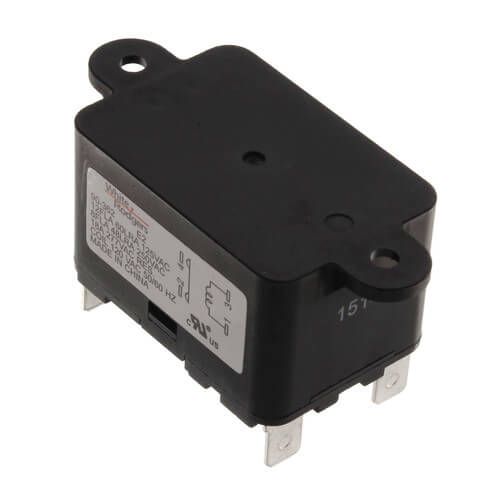

White Rodgers 90-362 - Fan Relay, Type 184, 120 VAC Coil, 50/60 Hz, SPNO. Coil Data: 2000 Ohms DC Resistance, 25 mA (Nominal)
Brand:
SKU
90-362
Heavy-Duty General Purpose Relay Operates in Any Position.
Features:
Compact, totally enclosed design
For heating and cooling applications and general switching
Quiet, reliable and economical
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPNO
Voltage: 120v
Hertz:50, 60
DC Resistance: 2000 ohms
Weight: 2.3 oz
mA: 25
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
