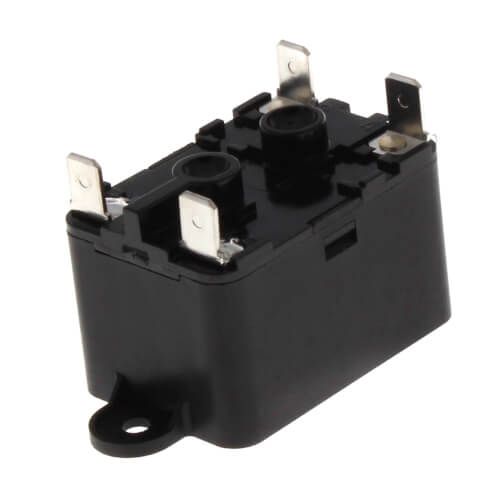

White Rodgers 90-360 - Fan Relay, Type 184, 24 VAC Coil, 50/60 Hz, SPNO. Coil Data: 77 Ohms DC Resistance, 125 mA (Nominal)
Brand:
SKU
90-360
Heavy-Duty General Purpose Relay Operates in Any Position
Features:
Compact, totally enclosed design
For heating and cooling applications and general switching
Quiet, reliable and economical
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPNO
Voltage: 24v
Hertz: 50, 60
DC Resistance: 77 ohms
Weight: 2.3 oz
mA: 125
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
White Rodgers 90-360 - Fan Relay, Type 184, 24 VAC Coil, 50/60 Hz, SPNO. Coil Data: 77 Ohms DC Resistance, 125 mA (Nominal)
Heavy-Duty General Purpose Relay Operates in Any Position
Features:
Compact, totally enclosed design
For heating and cooling applications and general switching
Quiet, reliable and economical
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPNO
Voltage: 24v
Hertz: 50, 60
DC Resistance: 77 ohms
Weight: 2.3 oz
mA: 125
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
