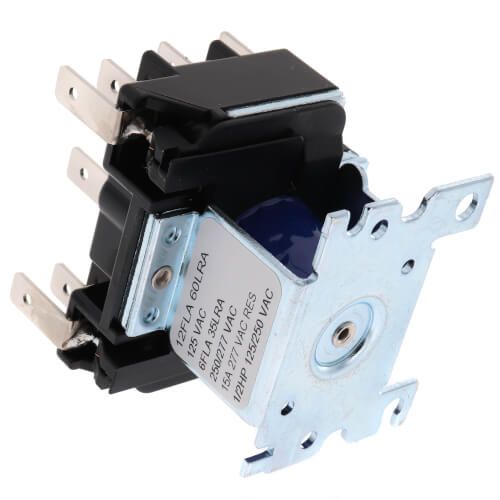

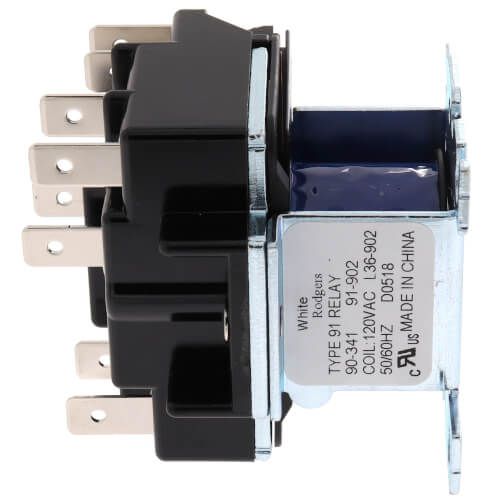

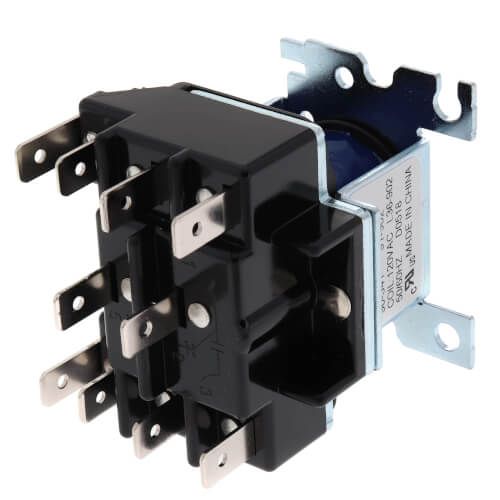

White Rodgers 90-341 - 2 Pole, Type 91, 115/120 VAC Coil, DPDT, 2 Sets Of Power Rated Contacts. 420 Ohms DC Resistance, 66 mA
Brand:
SKU
90-341
A Two Pole Double Throw Semi-Enclosed Relay.
Features:
Easy to install
Suited for use in vending machines, appliances, heating and air conditioning applications and general purpose switching
Application: Heating
Temperature Range (F): -40°F to 130°F
Type: DPDT
Voltage: 115/120V
Hertz: 60, 50
DC Resistance: 420 ohms
Weight: 6 oz
mA: 66
Nominal VA: 9.5
Inrush: 22
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
