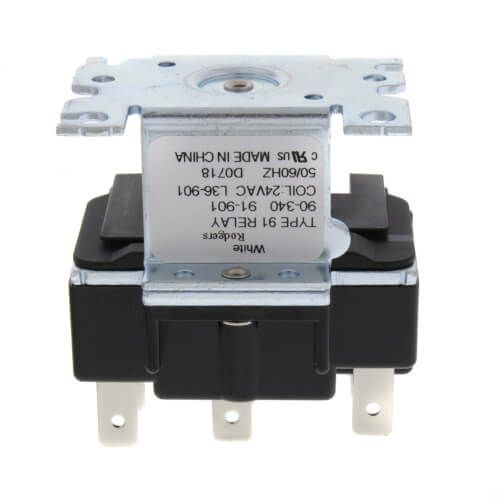

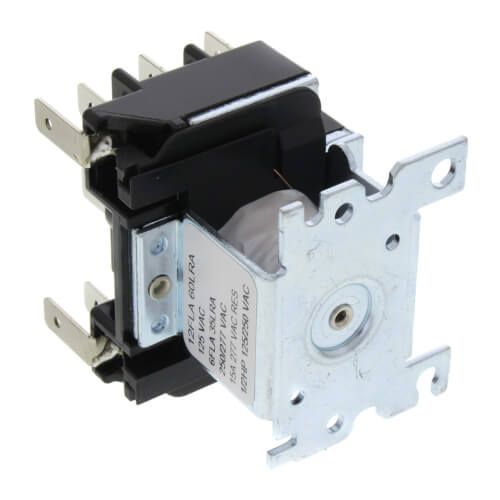

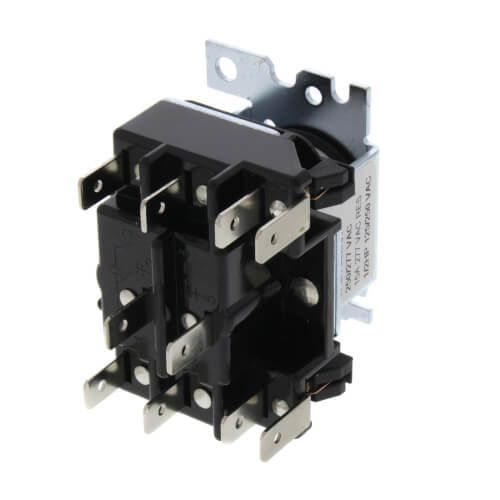

White Rodgers 90-340 - 2 Pole, Type 91, 24 VAC Coil, DPDT, 2 Sets Of Power Rated Contacts. 17.5 Ohms DC Resistance, 334 mA
Brand:
SKU
90-340
Switching Relay
Type AC Operated, WR/RBM Type 91
Contact Configuration DPDT
Contact Voltage Rating 125/250/277 Volt AC
Contact Current Rating 15 Amp at 277 Volt AC (Resistive)
Coil Voltage 24 Volt AC at 50/60 Hertz
Terminal Type 1/4 Inch Quick Connect
Approval UL, CSA
Coil Current Rating 334 Milliamp
Coil Power Rating 9.5 Volt Amp
Inrush Power Rating 22 Volt Amp
Overall Dimension 2.109 Inch Width x 2.375 Inch Depth x 1.859 Inch Height
Temperature Rating -40 to 130 Deg F
Application Fan Control Center
Application Vending Machine, Appliances, Heating and Air Conditioning, General Purpose Switching
