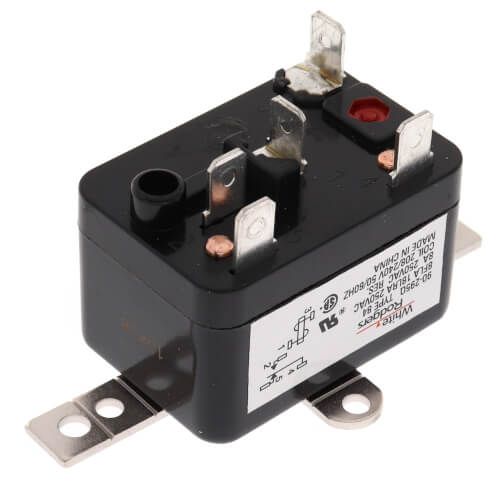

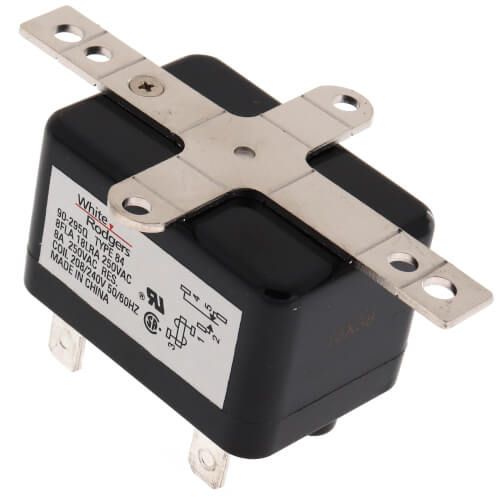

White Rodgers 90-295Q - Type 84 Fan Relay, 208/240 VAC Coil, SPDT. Coil Data: 7,000 Ohms DC Resistance, 12.5 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)
Brand:
SKU
90-295Q
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPDT
Voltage: 240v
Hertz: 50, 60
DC Resistance: 7000 ohms
Weight: 2.5 oz
mA: 12.5
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
White Rodgers 90-295Q - Type 84 Fan Relay, 208/240 VAC Coil, SPDT. Coil Data: 7,000 Ohms DC Resistance, 12.5 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPDT
Voltage: 240v
Hertz: 50, 60
DC Resistance: 7000 ohms
Weight: 2.5 oz
mA: 12.5
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
