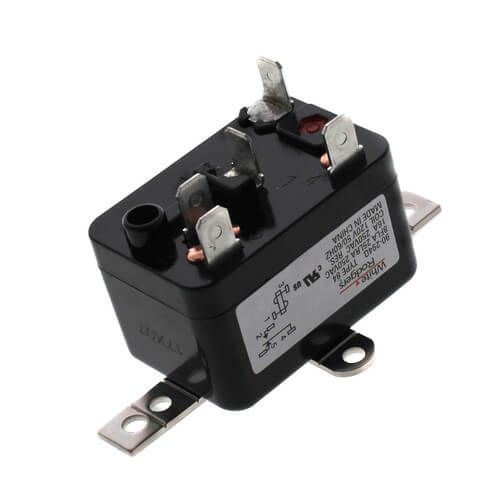

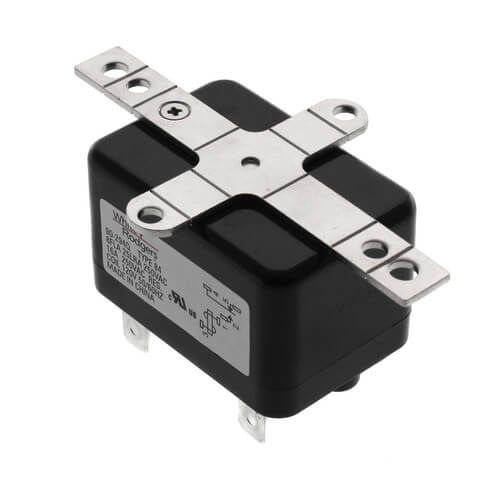

White Rodgers 90-294Q - Fan Relay, Type 84, 115/120 VAC Coil, SPDT. Coil Data: 2,000 Ohms DC Resistance, 25 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)
Brand:
SKU
90-294Q
Used for Switching Single or Two Speed Fan Motors, Solenoids, Relays, Resistive Loads and General Purpose Switching
Features:
Compact, totally enclosed design
For heating and cooling applications and general switching
Quiet, reliable and economical
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPDT
Voltage: 120v
Hertz: 50, 60
DC Resistance: 2000 ohms
Weight: 2.5 oz
mA: 25
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
