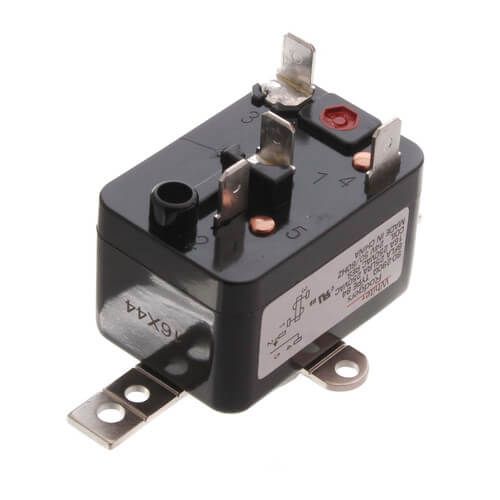

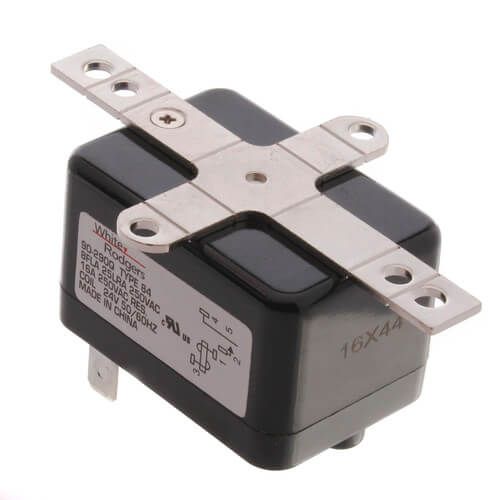

White Rodgers 90-290Q - Fan Relay, Type 84, 24 VAC Coil, SPNO. Coil Data: 90 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)
Brand:
SKU
90-290Q
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPNO
Voltage: 24v
Hertz: 50, 60
DC Resistance: 90 ohms
Weight: 2.5 oz
mA: 125
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
White Rodgers 90-290Q - Fan Relay, Type 84, 24 VAC Coil, SPNO. Coil Data: 90 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)
Application: Heating
Temperature Range (F): -40°F to 150°F
Type: SPNO
Voltage: 24v
Hertz: 50, 60
DC Resistance: 90 ohms
Weight: 2.5 oz
mA: 125
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals
