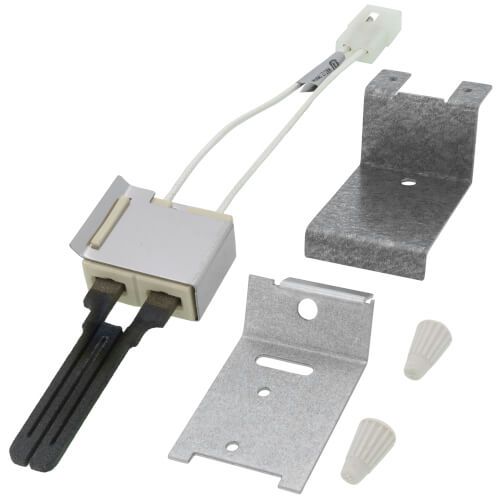

White Rodgers 767A-384 - Hot Surface Ignitor with 5-1/4" Leads (includes amp connection, bracket, & 2 mounting adapters)
Brand:
SKU
767A-384
Heating Control Hot Surface Igniter
Item Hot Surface Igniter
Used On Ignition Heating Control
Voltage Rating 120 Volt AC at 60 Hertz
Lead Length 5.25 Inch
Overall Dimension 1.25 Inch Width x 3.43 Inch Height
Electrical Connection Receptacle with 0.93 Inch Male Pin
Material Silicon Carbide
Insulation Temperature Rating 200 Deg C
Approval CSA
White Rodgers 767A-384 - Hot Surface Ignitor with 5-1/4" Leads (includes amp connection, bracket, & 2 mounting adapters)
Heating Control Hot Surface Igniter
Item Hot Surface Igniter
Used On Ignition Heating Control
Voltage Rating 120 Volt AC at 60 Hertz
Lead Length 5.25 Inch
Overall Dimension 1.25 Inch Width x 3.43 Inch Height
Electrical Connection Receptacle with 0.93 Inch Male Pin
Material Silicon Carbide
Insulation Temperature Rating 200 Deg C
Approval CSA
