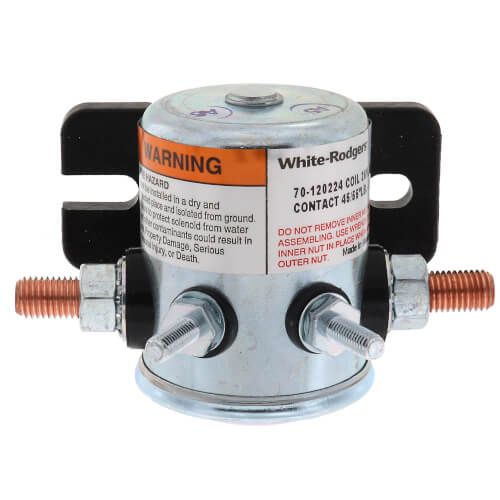

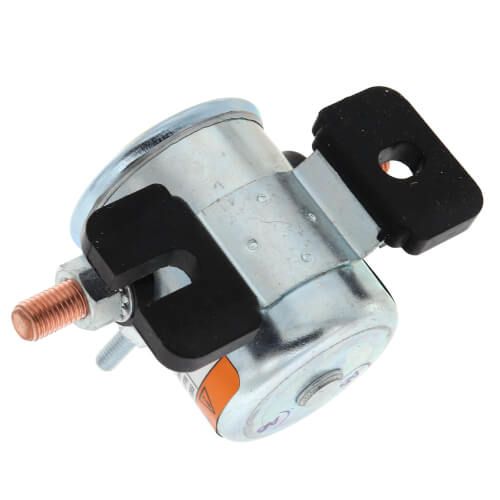

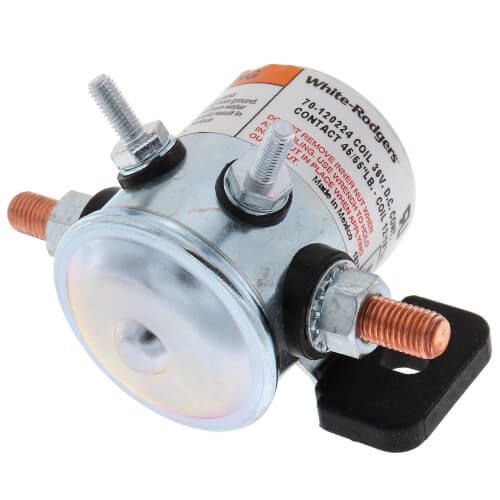

White Rodgers 70-120224 - Solenoid, SPNO, 36 VDC Isolated Coil, Continuous Duty

Statistic Icon
Brand:
SKU
70-120224
Solenoid
SPNO
36 VDC Isolated Coil
Continuous Duty
Normally Open Continuous Contact Rating 50 Amps, Inrush 200 Amps
Normally Closed Continous Contact Rating 30 Amps, Inrush 30 Amps

Application: Heating
Voltage: 36 VDC
Duty: Continuous
Continuous Resistance: 114 ohms
Temperature Range (F): -40°F to 149°F
Type: SPNO
Mount: Vertical
Coil Termination: Isolated
Contact Terminal: 45-55 inch-lbs Torque
Coil Terminal: 12-18 inch-lbs Torque
Contact Ratings: 50A
Inrush: 50A
main product photo

White Rodgers 70-120224 - Solenoid, SPNO, 36 VDC Isolated Coil, Continuous Duty

Brand:
AvailabilityIn stock (100)
SKU
70-120224
Solenoid
SPNO
36 VDC Isolated Coil
Continuous Duty
Normally Open Continuous Contact Rating 50 Amps, Inrush 200 Amps
Normally Closed Continous Contact Rating 30 Amps, Inrush 30 Amps

Application: Heating
Voltage: 36 VDC
Duty: Continuous
Continuous Resistance: 114 ohms
Temperature Range (F): -40°F to 149°F
Type: SPNO
Mount: Vertical
Coil Termination: Isolated
Contact Terminal: 45-55 inch-lbs Torque
Coil Terminal: 12-18 inch-lbs Torque
Contact Ratings: 50A
Inrush: 50A
Statistic Icon
- +
$30.46
