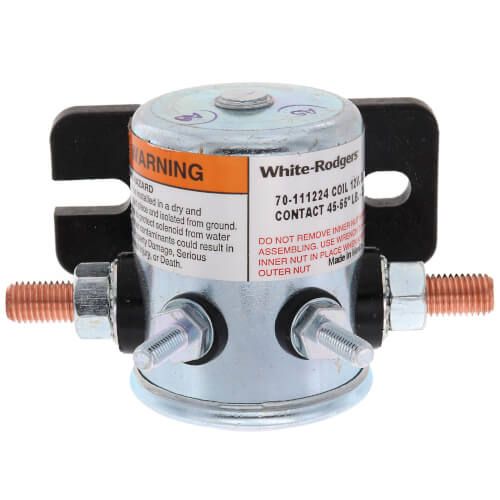

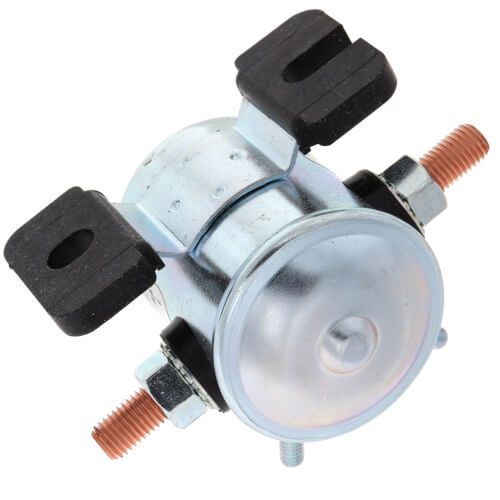

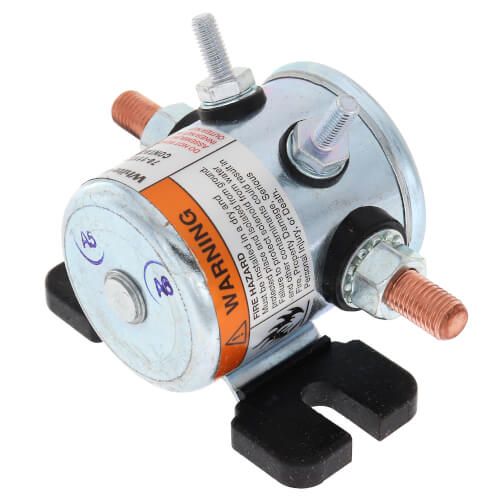

White Rodgers 70-111224 - Solenoid, SPNO, 12 VDC Isolated Coil, Continuous Duty

Brand:
SKU
70-111224
Power Contactor
Type SPNO, Isolated Coil
Voltage Rating 12 Volt DC
Inrush Current 150 Amp
Mounting Plunger Vertical with Cap Down
Size 5/16 Inch-24 UNF-2A Threaded (Contact), #10-32 UNF-2A Threaded (Coil)
Current Rating 80 Amp (Continuous)
Duty Cycle Continuous
Terminal Type 4
Bracket Style Standard
Coil Resistance 16 Ohm
Contact Material Copper
Dielectric Strength 600 Volt
Torque Rating 42 to 55 Inch-Pound (Contact Terminal), 12 to 18 Inch-Pound (Coil Terminal)
Overall Dimension 2.47 Inch Length x 3.48 Inch Width x 2.4 Inch Height
Temperature Rating -40 to 122 Deg F
Approval UL 538

White Rodgers 70-111224 - Solenoid, SPNO, 12 VDC Isolated Coil, Continuous Duty

Brand:
AvailabilityIn stock (112)
SKU
70-111224
Power Contactor
Type SPNO, Isolated Coil
Voltage Rating 12 Volt DC
Inrush Current 150 Amp
Mounting Plunger Vertical with Cap Down
Size 5/16 Inch-24 UNF-2A Threaded (Contact), #10-32 UNF-2A Threaded (Coil)
Current Rating 80 Amp (Continuous)
Duty Cycle Continuous
Terminal Type 4
Bracket Style Standard
Coil Resistance 16 Ohm
Contact Material Copper
Dielectric Strength 600 Volt
Torque Rating 42 to 55 Inch-Pound (Contact Terminal), 12 to 18 Inch-Pound (Coil Terminal)
Overall Dimension 2.47 Inch Length x 3.48 Inch Width x 2.4 Inch Height
Temperature Rating -40 to 122 Deg F
Approval UL 538
$37.27
