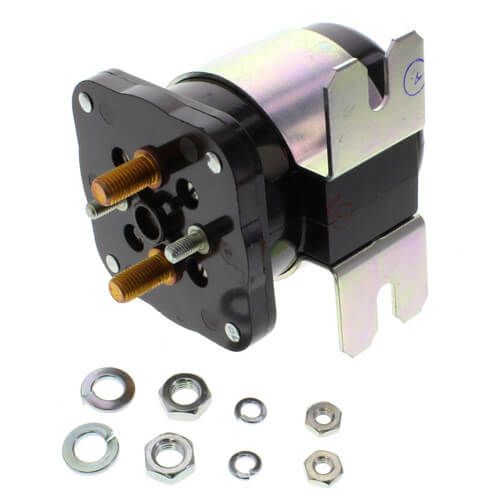

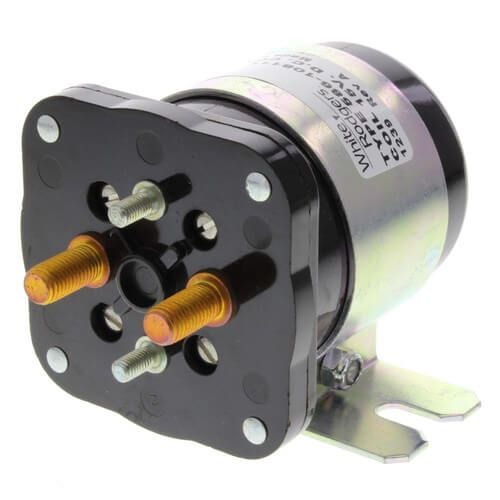

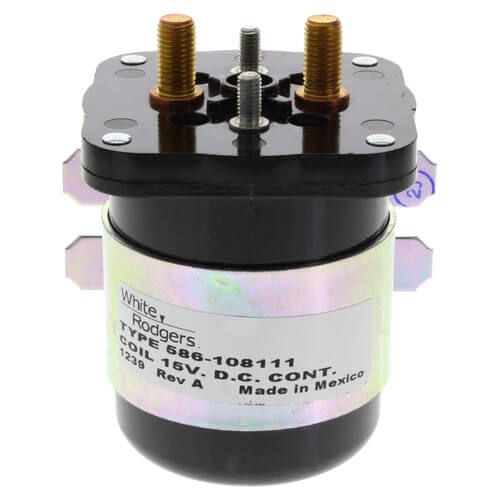

White Rodgers 586-108111 - Solenoid, SPNO, 15 VDC Isolated Coil, Normally Open Continuous Contact Rating 200 Amps, Inrush 600 Amps
Brand:
SKU
586-108111
Application: Heating
Voltage: 15 VDC
Duty: Continuous
Continuous Resistance: 32.8 ohms
Temperature Range (F): -40°F to 149°F
Type: SPNO
Mount: Vertical
Coil Termination: Isolated
Contact Terminal: 60 inch-lbs max
Coil Terminal: 12-18 inch-lbs Torque
Inrush: 600A
Contact Ratings: 200A
