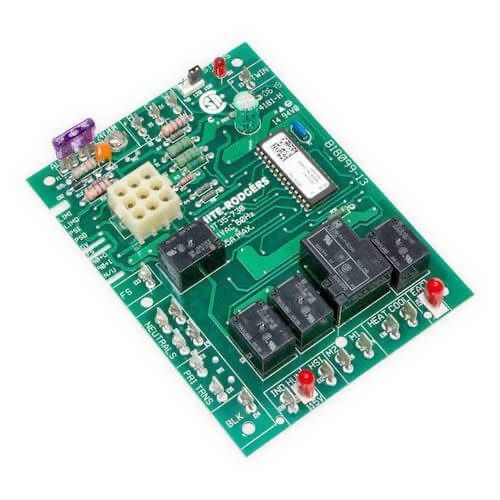

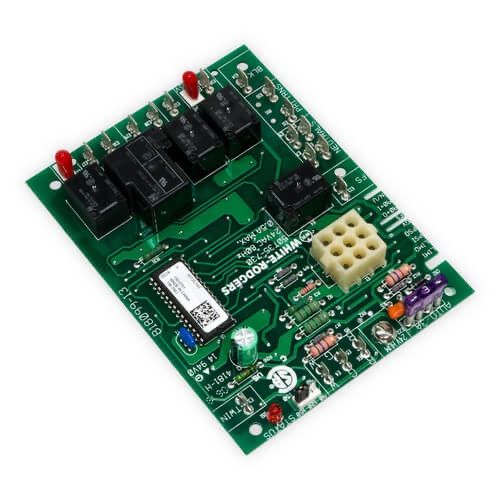

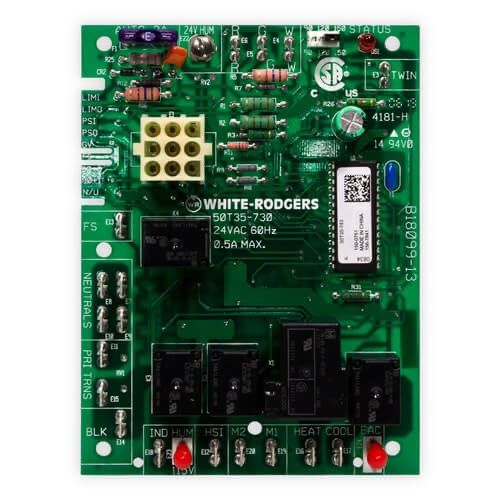

White Rodgers 50T35-743 - Silicon Carbide Integrated Ignition Control
Brand:
SKU
50T35-743
Integrated Hot Surface Furnace Control
Ignition Source Silicon Carbide Igniter
Prepurge Time 15 Second
Flame Failure Response Time 2 Second
Valve Rating 0.6 Power Factor, 1.5 Amp at 30 Volt AC 50/60 Hertz
Power Rating 20 to 30 Volt AC at 50/60 Hertz (RMS)
Temperature Rating -40 to 176 Deg F
Application Gas Valve, Igniter, Blower Motor, Inducer, Humidifier, Air Cleaner
Input Current Rating 0.35 Amp at 30 Volt AC
Igniter Relay 5 Amp at 120 Volt AC 50/60 Hertz
Inducer Relay Rating 4 (FLA) to 8 Amp (LRA) at 120 Volt AC
Circulator Relay Rating 14.5 (FLA) to 25 Amp (LRA) at 120 Volt AC
Includes Flash Code Diagnostic, Mounting Hole Template
