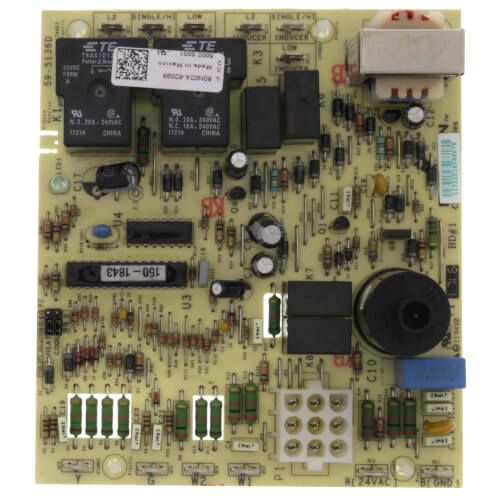

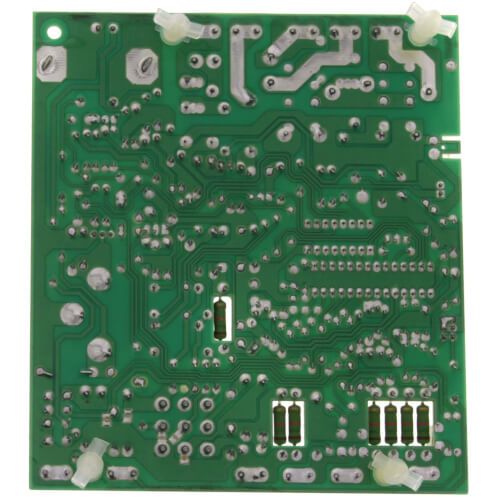

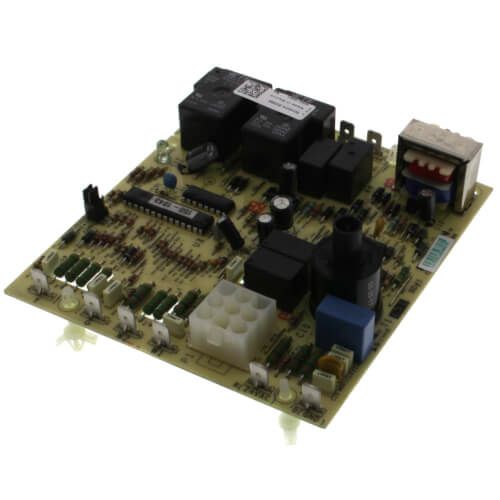

White Rodgers 50N02A-820 - Trane Integrated Furnace Control (80 or 0 second cool fan off delay)
Brand:
SKU
50N02A-820
Features:
Single or two-stage application
Direct spark ignition
80s cool off delay
For packaged units
Green diagnostic LED
Specifications:
Operating Temperature: -40° to 175°F (-40° to 80°C)
Humidity Range: 10% to 95% RH
Mounting: Standoffs/Adapter board
Electrical Ratings @ 77°F (25°C): Input Voltage-24 VAC, 50 / 60 Hz, Maximum Input Current @ 25 VAC-350 amp + MV
Gas Valve Relay: 1.5 amp @ 30 VAC 0.6 pf
Inducer Relay: 75 FLA, 1.5 LRA, max @ 240 VAC
Circulator Relay(s) – PSC: 10 FLA - 30 LRA max. @ 240 VAC
Spark Rate: 50 / 60 Hz
Spark Energy: 10mJ @ 18 VAC / 13mJ @ 24 VAC
Minimum current to insure flame detection: 1.2 microamperes DC*
Nominal current: 4.5 microamperes DC*
Timing Spec (@ 60 Hz) maximum: Flame establishing time - 0.8 sec, Flame failure response time - 2.0 seconds
