50M56U-843

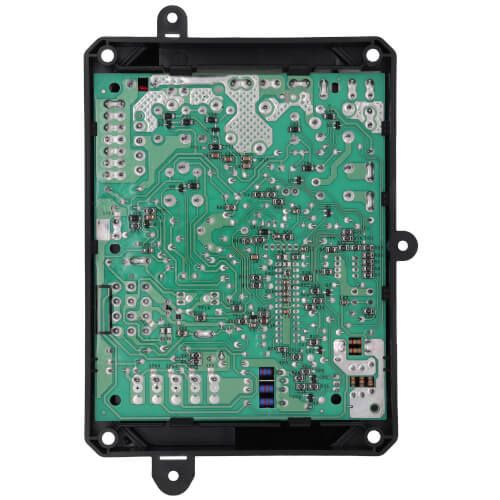

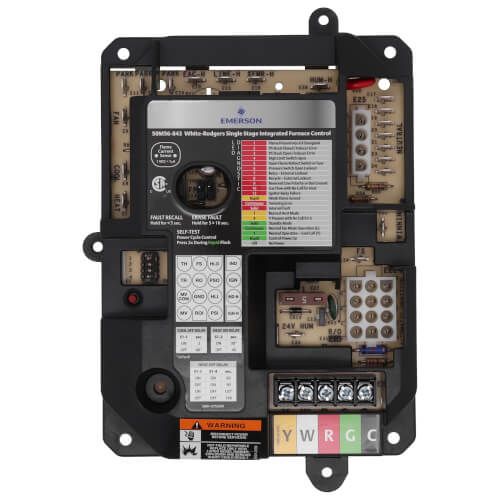

White Rodgers 50M56U-843 - Universal Single Stage HSI Integrated Furnace Control Kit

$174.52
Ignition Furnace Control Kit
Type Universal, 1-Stage
Fuel Type Natural, Manufactured, Mixed, Liquefied Petroleum and Liquid Propane Gas Air Mixture
Ignition Source Carbide and Nitride Igniter
Prepurge Time 30 Second
Flame Failure Response Time 2 Second
Valve Rating 1.5 Amp at 25 Volt AC 50/60 Hertz
Power Rating 25 Volt AC at 50/60 Hertz
Size 5.25 Inch Width x 1.25 Inch Depth x 7 Inch Height
Temperature Rating -40 to 176 Deg F
Application Furnace
Maximum Input Current 0.45 Amp at 25 Volt AC
Igniter Relay Rating 6 Amp at 120 Volt AC at 50/60 Hertz (Resistive)
Inducer Relay Rating 2.2 FLA to 3.5 LRA at 120 Volt AC
Circulator Relay Rating 14.5 FLA to 25 LRA at 120 Volt AC
Mounting Type Surface
Delay Timing 30 Second (Heat/ON), 100/150 Second (Heat/OFF), 6 Second (Cool/ON), 45 Second (Cool/OFF)

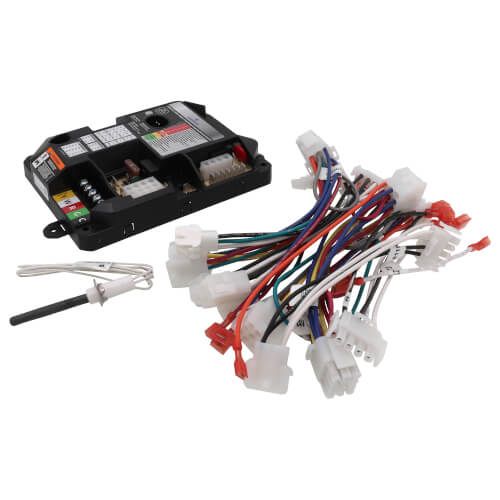

Includes Module, Wiring Harness, Hot Rod Igniter Kit
More Information
Package Quantity 1 Item
UPC 786710539541
