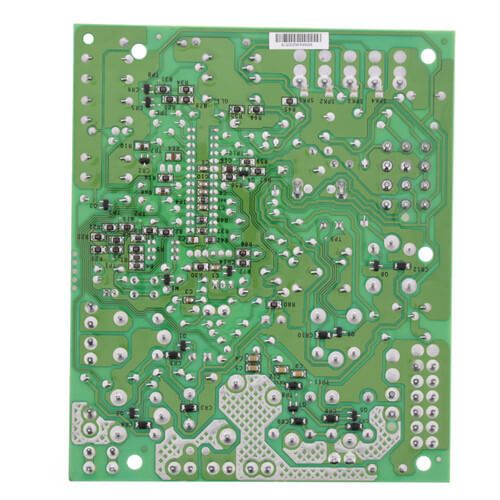

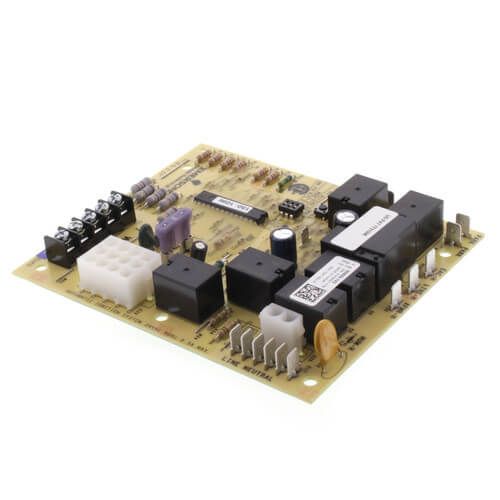

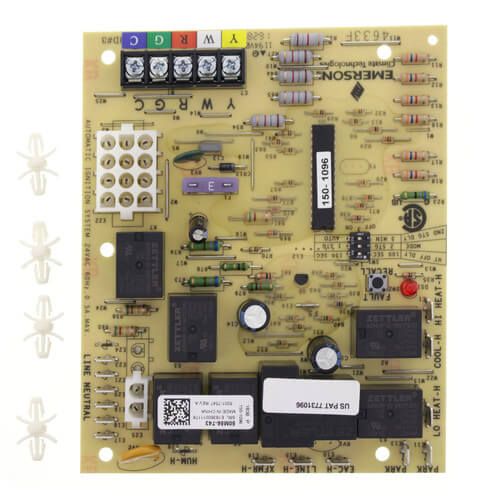

White Rodgers 50M56-743 - Hot Surface Ignitor Integrated Furnace Control Kit
Brand:
SKU
50M56-743
Integrated Furnace Control
Type 1 or 2-Stage, Integrated
Ignition Source Hot Surface
Prepurge Time 30 Second
Flame Failure Response Time 2 Second
Valve Rating 0.45 Amp at 30 Volt AC
Temperature Rating -40 to 176 Deg F
Application Furnace
Voltage Rating 25 Volt AC at 50/60 Hertz
Current Rating 1.5 Amp at 25 Volt AC 50/60 Hertz (Valve Relay), 6 Amp at 120 Volt AC 50/60 Hertz (Igniter Relay), 2.2 FLA to 3.5 LRA at 120 Volt AC (Inducer Relay), 14.5 FLA to 25 LRA at 120 Volt AC (Circulator Relay)
Mounting Type Snap in Standoff Humidity 5 to 93 Percent (Non-Condensing)
Heat Delay 30 Second (On), 100/150 Second (Off)
Cool Delay 6 Second (On), 45 Second (Off)
Post Purge 25 Second
