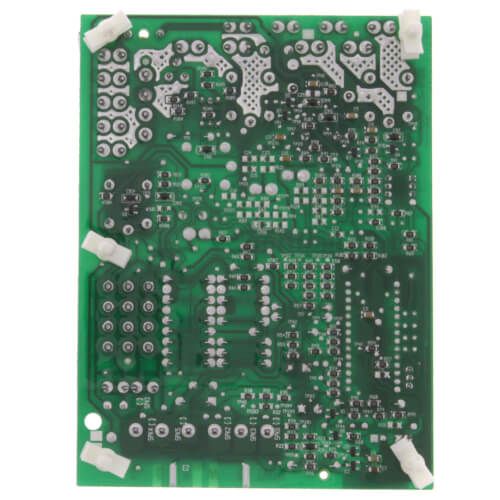

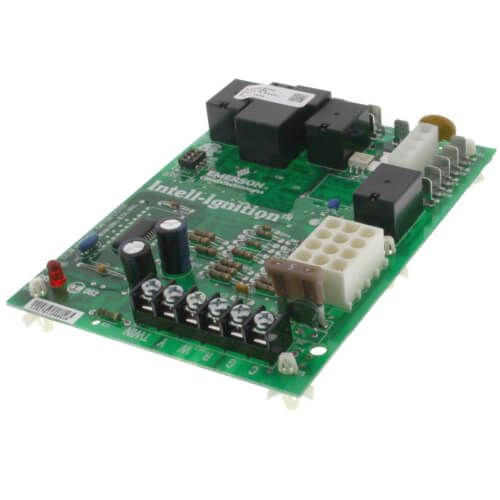

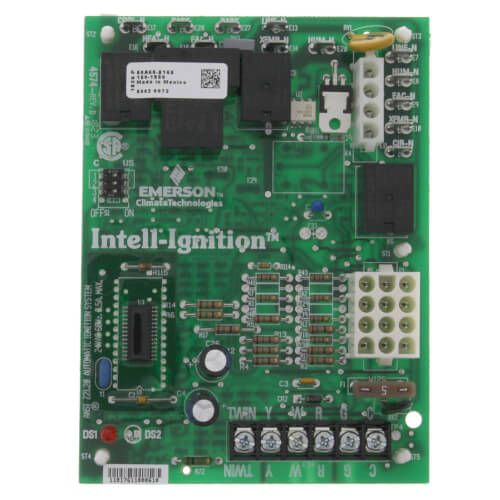

White Rodgers 50A65-5165 - 80V Ignitor HSI Integrated Furnace Control Kit
Brand:
SKU
50A65-5165
Furnace Hot Surface Ignition Control
Type 1-Stage, Integrated
Ignition Source Hot Surface
Ignition Trial Time 5 Second
Prepurge Time 0 Second
Flame Failure Response Time 2 Second
Valve Rating 1.5 Amp at 25 Volt AC 50/60 Hertz
Power Rating 25 Volt AC at 50/60 Hertz
Size 4.4 Inch Width x 1.25 Inch Depth x 5.9 Inch Height
Temperature Rating -40 to 176 Deg F
Application Furnace
Approval CSA
Voltage Rating 25 Volt AC at 50/60 Hertz
Current Rating 0.45 Amp at 30 Volt AC
Relay Load Rating 2 Amp at 120 Volt AC at 50/60 Hertz (Igniter), 2.2 Amp (Full Load)/3.5 Amp (Locked Rotor) at 120 Volt AC (Inducer), 14.5 Amp (Full Load)/25 Amp (Locked Rotor) at 120 Volt AC (Circulator)
Humidity 5 to 93 Percent (Non-Condensing)
Mounting Type Snap-In Stand-Off
Post-Purge Time 5 Second
Delay Heat Time 45 Second (On), 60/100/140/180 Second (Off)
Delay Cool Time 2 Second (On), 0/80 Second (Off)
Includes Diagnostic Indicator Flash Code
