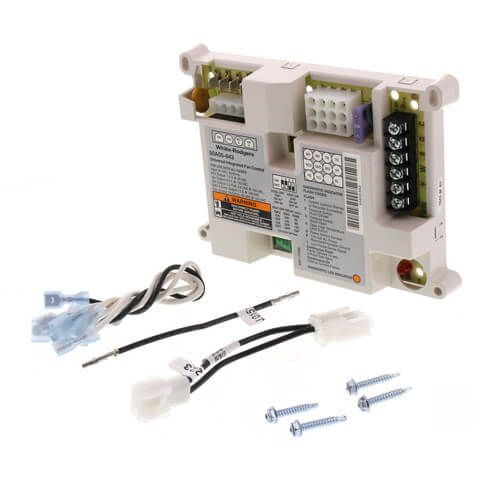

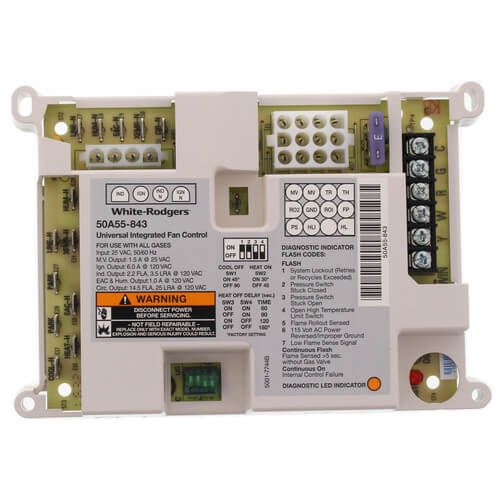

White Rodgers 50A55-843 - Universal Silicon Carbide Integrated Ignition Control
Brand:
SKU
50A55-843
Specifications:
Input Voltage: 25 VAC 50/60 Hz
Maximum Input Current: 25 VAC . 0.45 amp
Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf
Ignitor Relay: 6.0 amp @ 120 VAC 50/60 Hz (resistive)
Inducer Relay: 2.2 FLA – 3.5 LRA @ 120 VAC
Circulator Relay: 14.5 FLA – 25.0 LRA @ 120 VAC
Operating Temperature Range: -40 to +175°F (-40 to +79°C)
Humidity Range: 5% to 93% relative humidity
Features:
Includes flash code diagnostics
Fused to protect low voltage system transformers
Includes mounting hole template
Input Voltage - 25 VAC 50/60 Hz
Adjustable blower relay
ousing.
C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.
Lockout Timing: 45 Seconds
