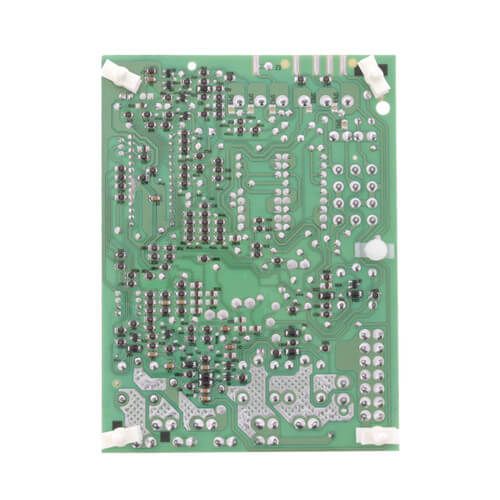

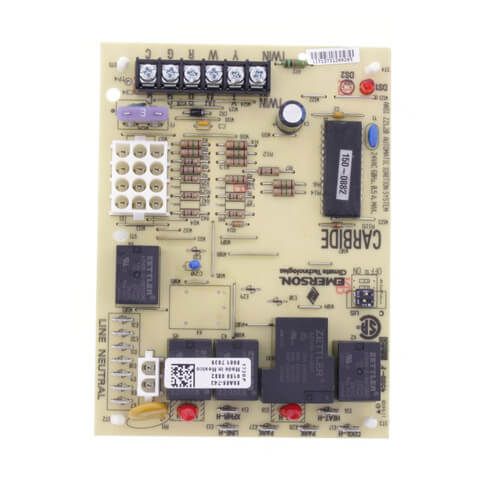

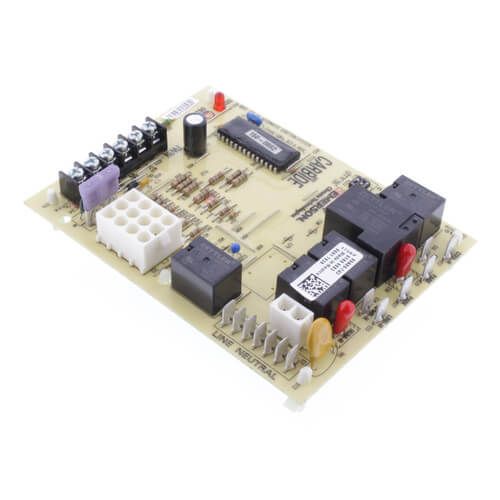

White Rodgers 50A55-743 - Single-Stage Hot Surface Ignitor Integrated Furnace Control Kit
Brand:
SKU
50A55-743
Hot Surface Furnace Control Kit
Type 1-Stage, Integrated
Fuel Type Natural, Manufactured, Mixed, Liquefied Petroleum and Liquid Propane Gas Air Mixture
Ignition Source Silicon Carbide Igniter
Ignition Sequence 2-Trial
Ignition Trial Time 4 Second
Prepurge Time 15 Second
Flame Failure Response Time 2 Second
Valve Rating 0.6 Power Factor, 1.5 Amp at 25 Volt AC 50/60 Hertz
Power Rating 25 Volt AC at 50/60 Hertz
Size 4.375 Inch Width x 1.25 Inch Depth x 5.875 Inch Height
Temperature Rating -40 to 175 Deg F
Application Gas Valve, Igniter, Blower, Inducer, Humidifier, Air Cleaner
Approval CSA (Canada and US)
Input Current Rating 0.45 Amp at 30 Volt AC
Igniter Relay 6 Amp at 120 Volt AC 50/60 Hertz
Inducer Relay Rating 2.2 (FLA) to 3.5 Amp (LRA) at 120 Volt AC
Circulator Relay Rating 14.5 (FLA) to 25 Amp (LRA) at 120 Volt AC
Includes Flash Code Diagnostic
