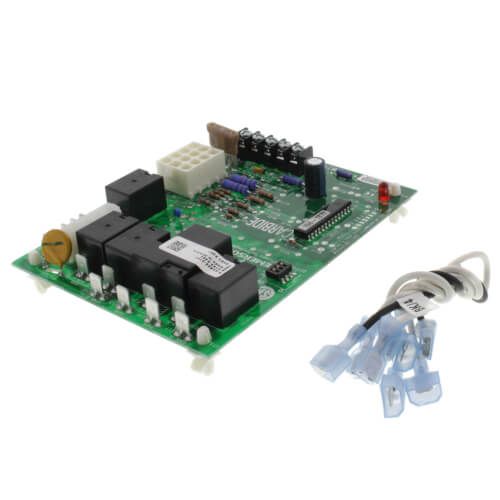

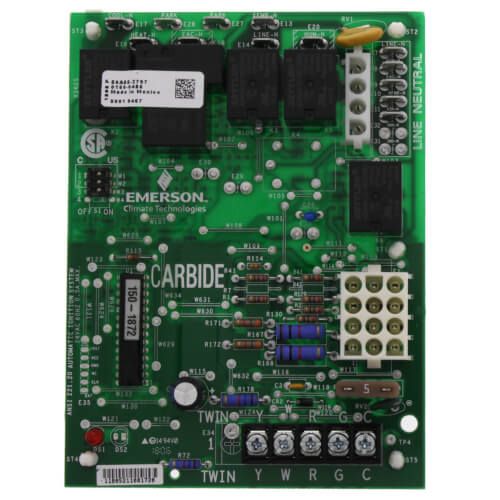

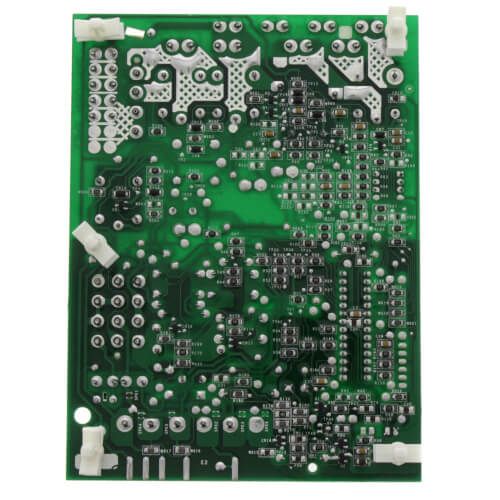

White Rodgers 50A55-3797 - 120V Ignitor HSI Integrated Furnace Control Kit
Brand:
SKU
50A55-3797
Hot Surface Furnace Control Kit
Type 1-Stage, Integrated
Fuel Type Natural, Manufactured, Mixed, Liquefied Petroleum and Liquid Propane Gas Air Mixture
Ignition Source Hot Surface
Ignition Sequence 3-Trial
Ignition Trial Time 4 Second
Prepurge Time 0 Second
Flame Failure Response Time 2 Second
Valve Rating 1.5 Amp at 25 Volt AC 50/60 Hertz
Power Rating 25 Volt AC at 50/60 Hertz
Size 4.4 Inch Width x 1.25 Inch Depth x 5.9 Inch Height
Temperature Rating -40 to 175 Deg F
Application Furnace
Approval CSA (Canada and US)
Igniter Relay Rating 6 Amp at 120 Volt AC 50/60 Hertz (Resistive)
Inducer Relay Rating 2.2 Amp FLA to 3.5 Amp LRA at 120 Volt AC
Circulator Relay Rating 14.5 Amp FLA to 25 Amp LRA at 120 Volt AC
Humidity 5 to 93 Percent (Non-Condensing)
Ignition Activation Period 3 Second
Valve Sequence Period 12 Second
Interpurge Time 60 Second
Post Purge Time 5 Second
Lockout Time 300 Second
Auto Reset Time 60 Minute
Includes Flash Code Diagnostic
