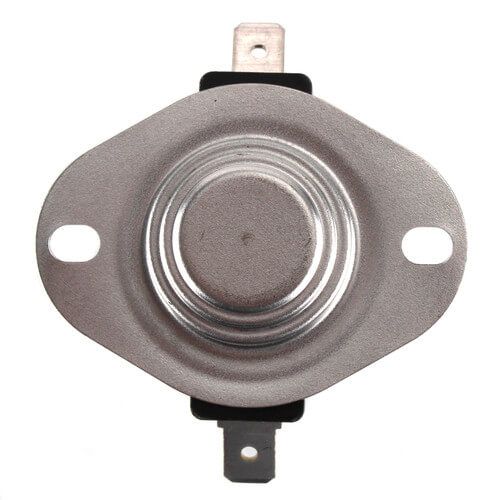

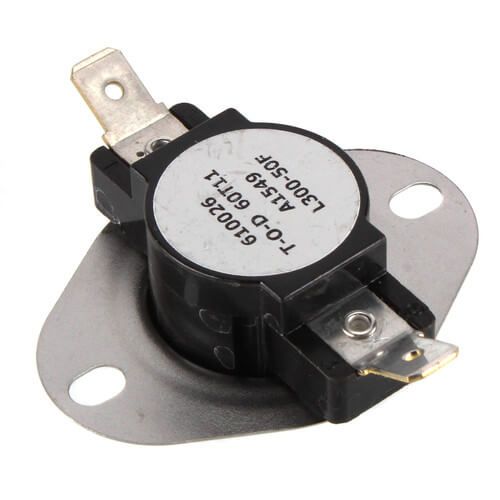

White Rodgers 3L01-300 - 3/4" Snap Disc Limit Control, Cut-In- 250 Degrees F, Cut-Out - 300 Degrees F (Open on Rise)
Brand:
SKU
3L01-300
Heating Snap Disc Fan/Limit Control
Type Snap Disc Limit Control
Used On Blower or High Limit Safety Control/Heating Control
Therm-O-Disc Style 60T11
Therm-O-Disc Type 610026
Mounting Type 3/4 Inch Flanged Airstream Mount
Switch Type SPST, Open on Rise
Voltage Rating 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
Current Rating 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
Power Rating 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
Temperature Rating 250 Deg F (Cut-In), 300 Deg F (Cut-Out)
White Rodgers 3L01-300 - 3/4" Snap Disc Limit Control, Cut-In- 250 Degrees F, Cut-Out - 300 Degrees F (Open on Rise)
Heating Snap Disc Fan/Limit Control
Type Snap Disc Limit Control
Used On Blower or High Limit Safety Control/Heating Control
Therm-O-Disc Style 60T11
Therm-O-Disc Type 610026
Mounting Type 3/4 Inch Flanged Airstream Mount
Switch Type SPST, Open on Rise
Voltage Rating 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
Current Rating 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
Power Rating 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
Temperature Rating 250 Deg F (Cut-In), 300 Deg F (Cut-Out)
