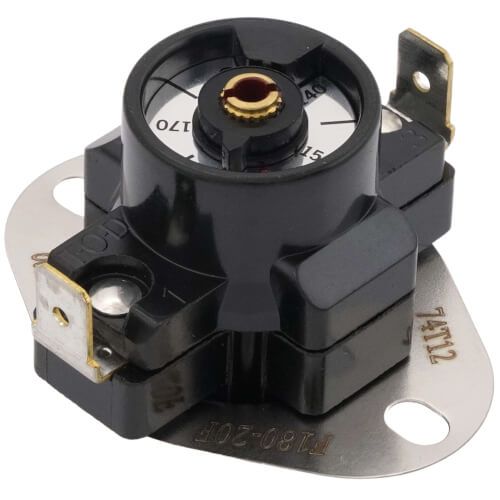

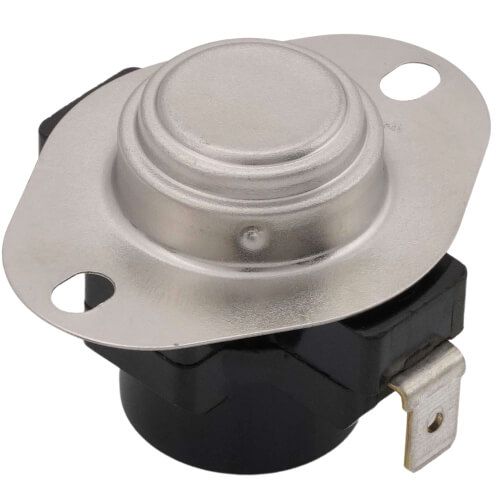

White Rodgers 3F05-2 - 3/4" Snap Disc Fan Control, Temperature Range 140 to 180 Degrees F, Includes Tab-to-Screw Terminals
Brand:
SKU
3F05-2
Adjustable Snap Disc Thermostat Allows You to Set the Temperature Set Point to Match Your Specific Needs Which Simplifies Inventory
Features:
1/4" quick connect terminals are standard
Reduces inventory while providing coverage for a wide range of temperature applications
Replaces the majority of fixed disc thermostats now on heating equipment and various appliances
2 adjustable fan control models replace 7 fixed snap disc models
5 adjustable limit control models replace 10 fixed snap disc models
Application: Fan Control
Temperature Range (F): 140°F to 180°F
Motor: Locked Rotor: 60A @ 240VAC, Locked Rotor: 72A @ 120VAC, Full Load: 10A @ 240VAC, Full Load: 14A @ 120VAC
Differential: 20°F
Switch Action: Close on Rise
Pilot Duty Rating: 125 VA @ 120 Vac, 125 VA @ 240 Vac
Connection Type: Quick-Connect
Features: Adjustable Temperature
