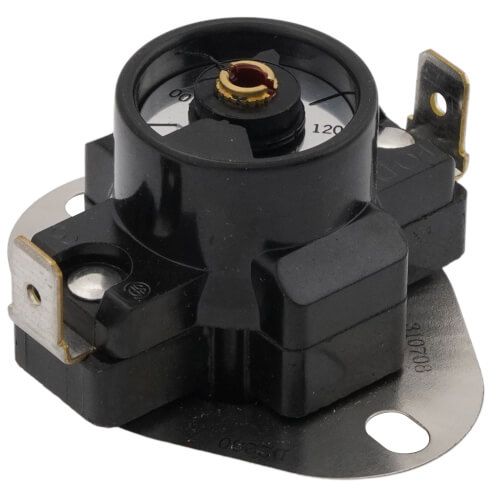

White Rodgers 3F05-1 - 3/4" Snap Disc Fan Control, Temperature Range 90 to 130 Degrees F, Includes Tab-to-Screw Terminals
Brand:
SKU
3F05-1
Adjustable Snap Disc Thermostat Allows You to Set the Temperature Set Point to Match Your Specific Needs Which Simplifies Inventory.
Features;
Features;
1/4" quick connect terminals are standard
Reduces inventory while providing coverage for a wide range of temperature applications
Replaces the majority of fixed disc thermostats now on heating equipment and various appliances
2 adjustable fan control models replace 7 fixed snap disc models
5 adjustable limit control models replace 10 fixed snap disc models.
Application: Fan Control
Temperature Range (F): 90°F to 130°F
Motor: Full Load: 10A @ 240VAC
Full Load: 14A @ 120VAC
Locked Rotor: 60A @ 240VAC
Locked Rotor: 72A @ 120VAC
Differential: 20°F
Switch Action: Close on Rise
Pilot Duty Rating: 125 VA @ 120 Vac, 125 VA @ 240 Vac
Connection Type: Quick-Connect
Features: Adjustable Temperature
