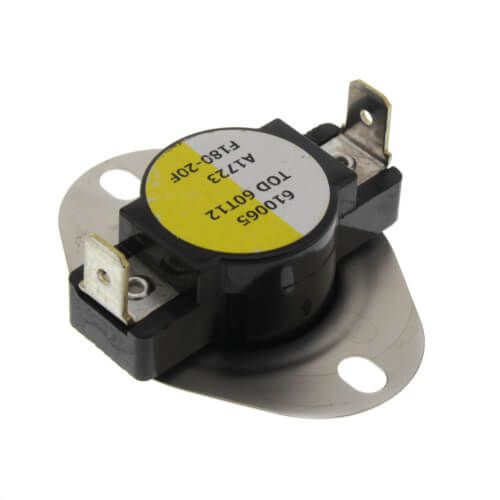

White Rodgers 3F01-180 - 3/4" Snap Disc Fan Control, Cut-In- 180 Degrees F, Cut-Out - 160 Degrees
Brand:
SKU
3F01-180
NOTE: If an adapter plate is required for your application, F6-1798 must be purchased separately.
Designed for quick on-job replacement
Features:
Easy to remember type numbers -"L" for Limit - "F" for Fan
Last three numbers indicate cut-out temperatures on limits and cut-in temperatures on fan controls
Mounting holes match standard 3/4" snap discs
Tab-to-screw terminal adapters furnished
Application: Fan Control
Motor: 10A @ 120VAC, 5A @ 240VAC
Features: Fixed Temperature
Cut-In Temperature: 180°F
Cut-Out Temperature: 160°F
Switch Action: Close on Rise
Pilot Duty Rating: 125 VA @ 120 Vac, 125 VA @ 277 Vac, 125 VA @ 240 Vac
