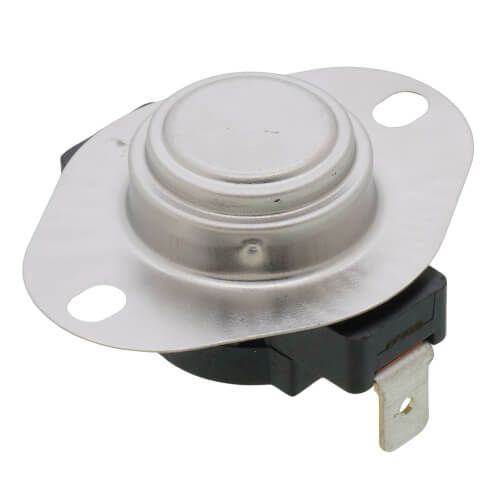

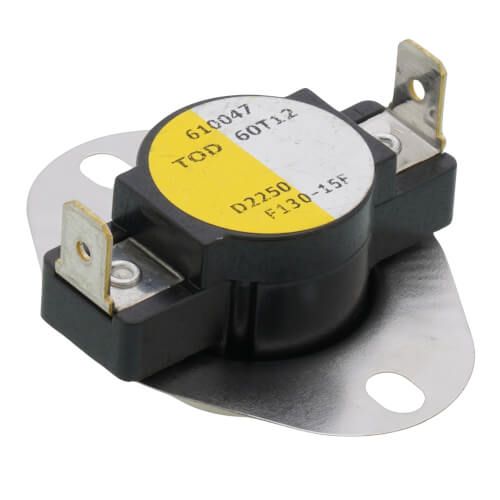

White Rodgers 3F01-130 - 3/4" Snap Disc Fan Control, Cut-In- 130 Degrees F, Cut-Out - 115 Degrees F
Brand:
SKU
3F01-130
Heating Snap Disc Fan Control
Type Snap Disc Fan Control
Used On Fan/Blower/Heating Control
Therm-O-Disc Style 60T12
Therm-O-Disc Type 610047
Mounting Type 3/4 Inch Flanged Airstream Mount
Switch Type SPST, Close on Rise
Voltage Rating 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
Current Rating 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC, (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
Power Rating 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
Temperature Rating 130 Deg F (Cut-In), 115 Deg F (Cut-Out)
