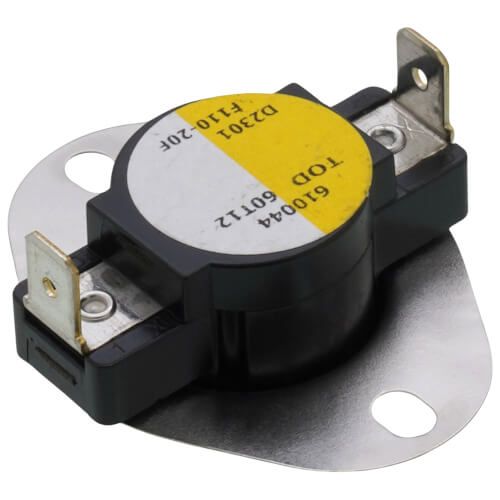

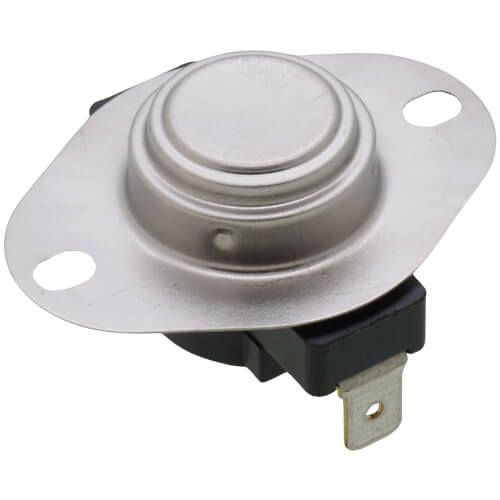

White Rodgers 3F01-110 - 3/4" Snap Disc Fan Control, Cut-In- 110 Degrees F, Cut-Out - 90 Degrees F
Brand:
SKU
3F01-110
Heating Snap Disc Fan Control
Type Snap Disc Fan Control
Used On Fan/Blower/Heating Control
Therm-O-Disc Style 60T12
Therm-O-Disc Type 610044
Mounting Type 3/4 Inch Flanged Airstream Mount
Switch Type SPST, Close on Rise
Voltage Rating 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
Current Rating 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC, (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
Power Rating 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
Temperature Rating 110 Deg F (Cut-In), 90 Deg F (Cut-Out)
