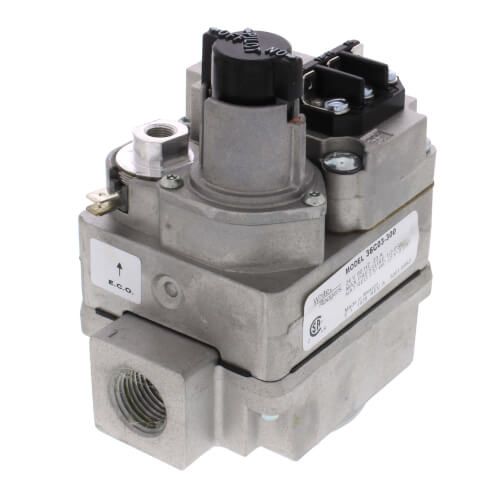

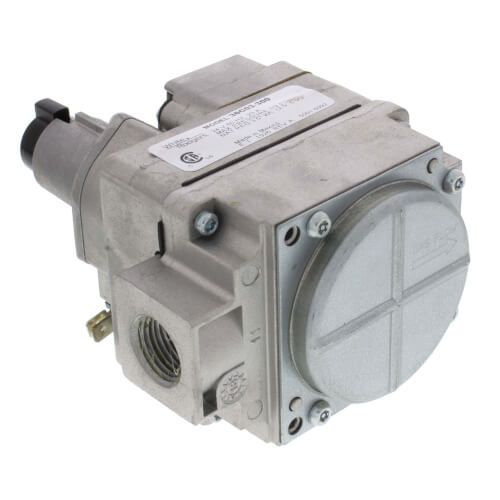

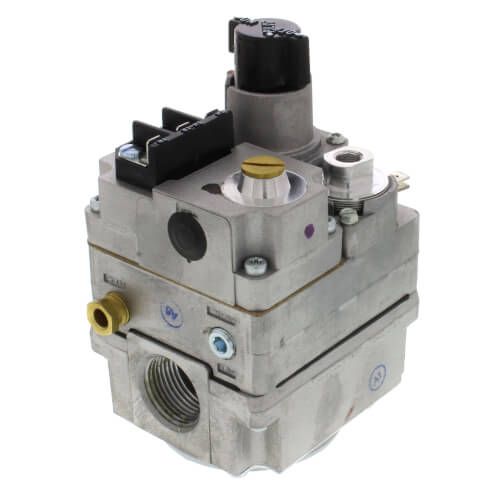

White Rodgers 36C03-300 - 1/2" X 3/4" Gas Valve, 24 VAC

Gas Valve
Type Standing Plot, Fast Open, Straight, Through Wiring
Nominal Size 1/2 Inch x 3/4 Inch
End Connection Female Threaded x Female Threaded
Input Supply Rating 24 Volt AC at 60 Hertz 0.23 Amp
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Convertible Natural/Liquid Propane, Liquid Propane Conversion Kit, Line Interrupter, Reducer Bushing Kit
Exclusions Inlet Pressure Tap, Side Tap
Application Intermittent Ignition System
Applicable Standard CSA (Canada and US)
Fuel Type Natural/Liquid Propane
Pilot Gas Connection 1/4 Inch Compression Fitting
Pressure Tap Connection 1/8 Inch Threaded
Capacity 230000 BTU/Hour (Natural Gas), 372600 BTU/Hour (Liquid Propane Gas)
Regulator Setting 3.5 Inch
Regulator Adjustment Range 2.5 to 5 Inch
Overall Dimension 2.875 Inch Width x 3.375 Inch Depth x 5.169 Inch Height
