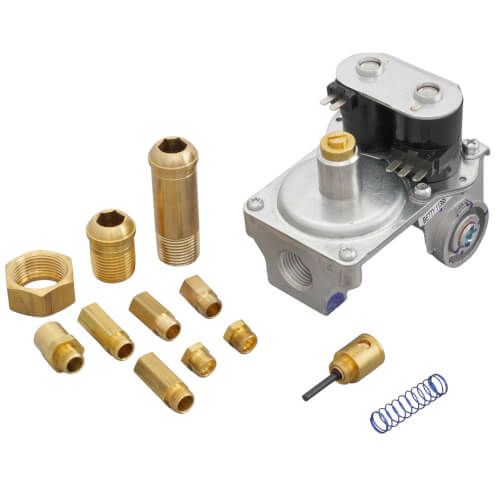

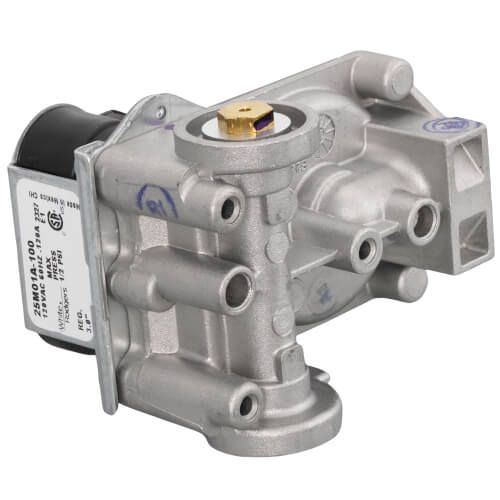

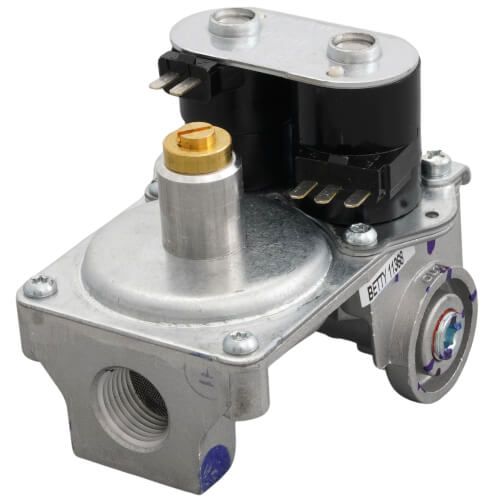

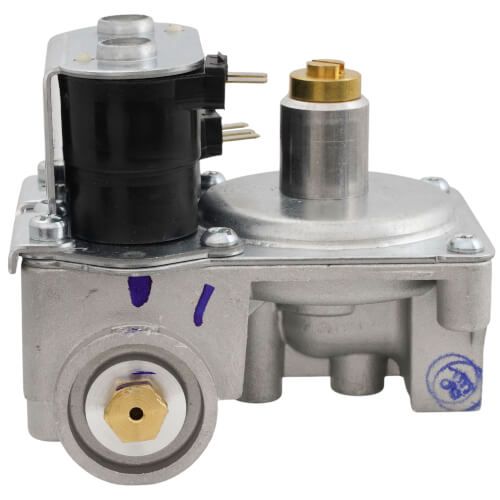

White Rodgers 25M01A-100 - 25M01A Gas Dryer Valve (Universal Right Angle Left Application)
Brand:
SKU
25M01A-100
Electronic Ignition Gas Valve
Type Universal, Right/Left Angle
Nominal Size 3/8 Inch x 11/32 Inch
End Connection Female Threaded x Female Threaded
Input Supply Rating 120 Volt AC at 60 Hertz 0.06 Amp
Temperature Rating 32 to 155 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Inlet/Outlet Screen, Outlet Pressure Tap, Extensive Cross Reference, Eight Orifices, (2) Bushing, (2) Nut
Fuel Type Natural/Liquid Propane
Capacity 40000 BTU/Hour (Natural/Liquid Propane Gas)
Regulator Adjustment Range 2.8 to 5.4 Inch (Natural), 8.5 to 12 Inch (Liquid Propane)
White Rodgers 25M01A-100 - 25M01A Gas Dryer Valve (Universal Right Angle Left Application)
Electronic Ignition Gas Valve
Type Universal, Right/Left Angle
Nominal Size 3/8 Inch x 11/32 Inch
End Connection Female Threaded x Female Threaded
Input Supply Rating 120 Volt AC at 60 Hertz 0.06 Amp
Temperature Rating 32 to 155 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Inlet/Outlet Screen, Outlet Pressure Tap, Extensive Cross Reference, Eight Orifices, (2) Bushing, (2) Nut
Fuel Type Natural/Liquid Propane
Capacity 40000 BTU/Hour (Natural/Liquid Propane Gas)
Regulator Adjustment Range 2.8 to 5.4 Inch (Natural), 8.5 to 12 Inch (Liquid Propane)
