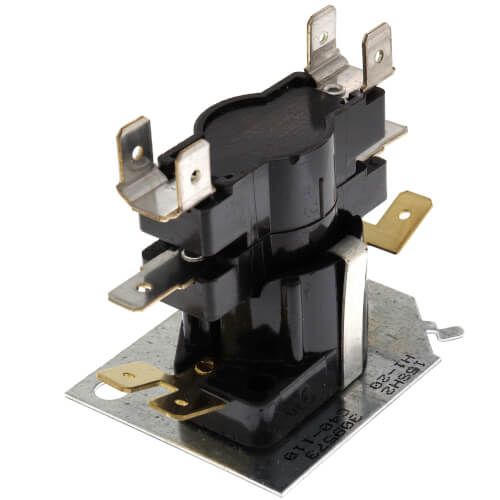

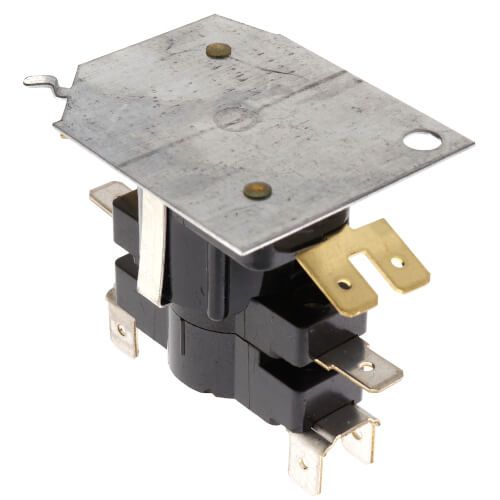

White Rodgers 24A34-3 - Electric Heat Sequencer, 2 Switches. On Timings, 1-20 Sec. Off Timings, 40-110 Sec.
Brand:
SKU
24A34-3
Electric Heat Sequencer
Voltage Rating 120/240/480 Volt AC
Timing Mode On/Off-Delay
Timing Range 1 to 20 Second (On), 40 to 110 Second (Off)
Mounting Multi-Poise
Used On Fan/Electronic Heat
Number of Timings 1
Number of Switch 2
Input Control Voltage 24 Volt
Current Rating 25 Amp at 120/240 Volt AC (Resistive), 14/72 Amp at 120 Volt AC, 7/42 Amp at 240 Volt AC (Full Load/Locked Rotor), 125 Volt Amp at 120/240 Volt AC, 480 Volt Amp at 480 Volt AC (Pilot Duty)
Power Rating 3000 Watt at 120 Volt AC, 6000 Watt at 240/480 Volt AC
Temperature Rating -50 to 165 Deg F
