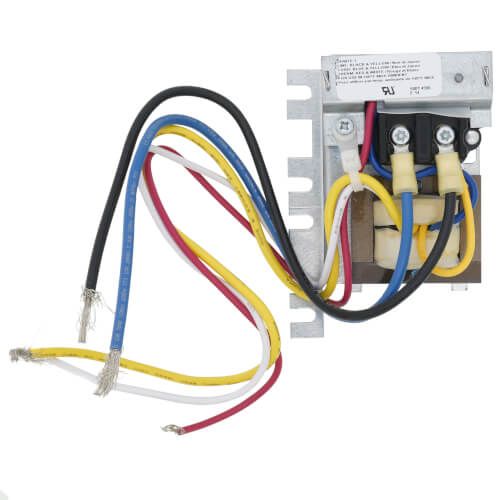

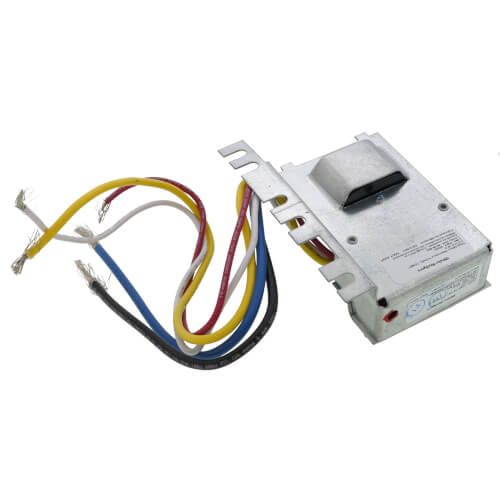

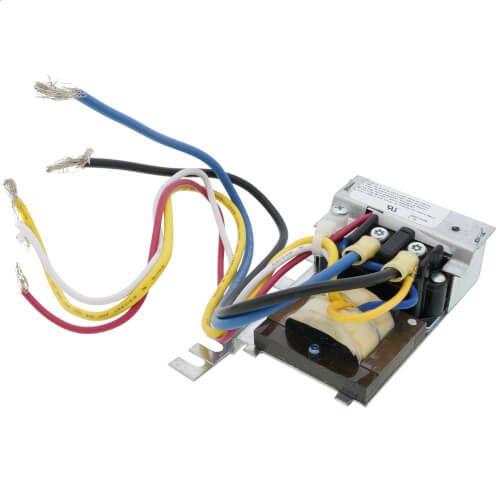

White Rodgers 24A07E-1 - Electric Heat Relay, No Enclosure (208VAC)
Brand:
SKU
24A07E-1
Baseboard Heater Low Voltage Control System
Item Low Voltage Control System
Type SPST, Normally Open, Silent Operation
Size 4-9/16 Inch Width x 1-29/32 Inch Depth x 1-7/8 Inch Height
Used On Item Baseboard Heater
Applicable Standard UL, CSA
Input Voltage 208 Volt AC at 60 Hertz
Thermostat Current 0.2 Amp
AC Resistive 5200 Watt 208 Volt 25 Amp
Motor Rating 12 Amp at 208 Volt (Full Load), 72 Amp at 208 Volt (Locked Rotor)
Average Time Delay 45 Second
