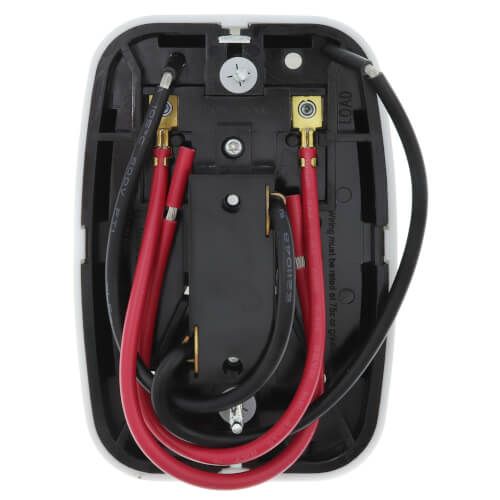

White Rodgers 1G66-641 - Line Voltage Mechanical Bimetal, DPST Open on Rise, No Thermometer, Wallplate Included, w/ OFF Position (White)
Brand:
SKU
1G66-641
Thermostat
Type Line Voltage
Cover Type Vertical
Color Classic White
Voltage Rating 240/277 Volt AC
Current Rating 22 Amp at 240 Volt AC, 18 Amp at 277 Volt AC (Non-Inductive)
Power Rating 5000 Watt (Non-Inductive)
Switch Type Open-On-Rise
Temperature Rating 40 to 80 Deg F
Size 3-5/16 Inch Width x 1-7/18 Inch Depth x 4-13/16 Inch Height
Approval UL, CSA
Differential Temperature Rating 2 Deg F
Application Controlling Baseboard, Cable Heat, Glass Panel
