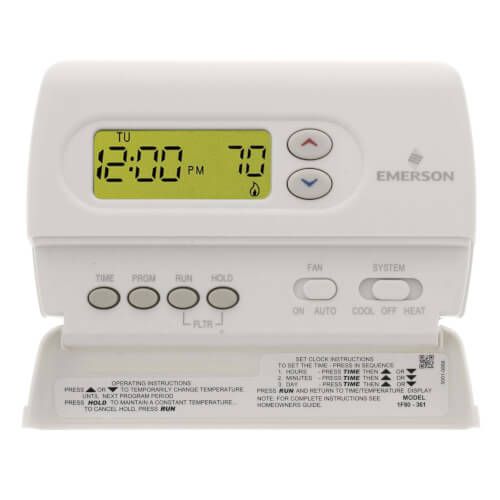

White Rodgers 1F80-361 - 80 Series Programmable, 1H/1C, Digital Thermostat
Brand:
SKU
1F80-361
Thermostat
Type 5+1+1 Programmable, 1-Heat/1-Cool (Conventional/Heat Pump), 1-Stage
Cover Type Rectangular Horizontal
Voltage Rating 30 Volt AC (Battery), 24 Volt AC at 50/60 Hertz (Hardwire)
Current Rating 1 to 1.5 Amp (Load Terminal)
Temperature Rating 32 to 105 Deg F
Size 6 Inch Width x 1-3/16 Inch Depth x 3-7/8 Inch Height
Display Size 2.2 Square Inch
Set Point Temperature 45 to 99 Deg F
Display Temperature 32 to 99 Deg F
Terminal Designation RC, RH, C, W, Y, O, B, G
Humidity 90 Percent (Non-Condensing)
Application Gas, Oil, Electric, Millivolt Compatible
Applicable Standard NEC Class II
