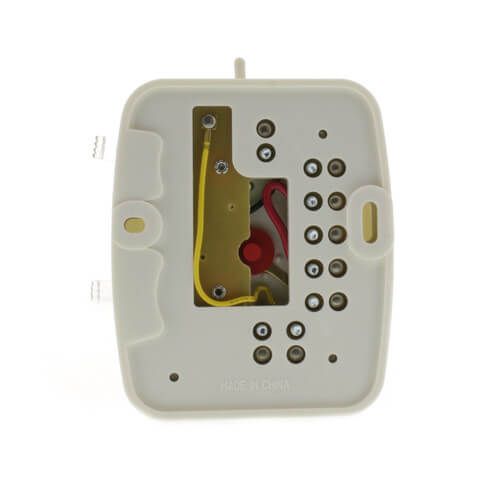

White Rodgers 1C26-101 - Heat/Cool Snap Acting thermostat in white vertical mount
Brand:
SKU
1C26-101
Single Stage (1H/1C) Setpoint Thermostat
24 Volts
System Switch- Heat, Off, Cool
Fan Switch-Auto, Continuous
Profile-Vertical Rounded, Range 50-90° F.
Mercury Free
Application: Single-Stage (Heat/Cool)
Stages: 1 Heat/1 Cool
Programmability: Non-Programmable
User Interface: Mechanical
Mount: Vertical
Options: Fan Control
Changeover: Manual
Temperature Range (F): 50°F - 90°F
Voltage: 24v, Low voltage
Amperage: 0.15-1.5
Wattage: 3.6 to 45
Wiring: O, G, Y, Rc, A, Rh, B, W
Color: White
Height: 3-3/4"
Width: 2-7/8"
Depth (Inches): 1-1/2"
