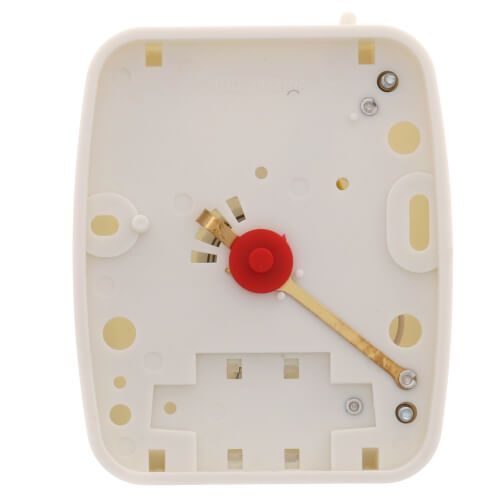

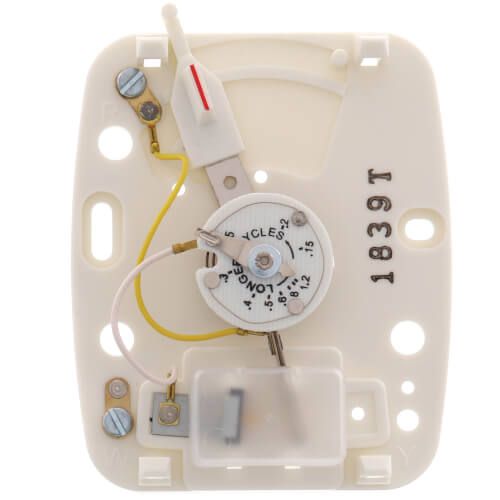

White Rodgers 1C20-102 - Single-Stage Snap-Action Low voltage room thermostat
Brand:
SKU
1C20-102
Thermostat
Type Mechanical, Adjustable Heat Anticipator, 1-Heat, 1-Stage
Cover Type Vertical
Voltage Rating 24 Volt AC at 50/60 Hertz
Current Rating 0.15 to 1.2 Amp
Switch Type Snap Action
Temperature Rating 50 to 90 Deg F
Size 2-7/8 Inch Width x 1-1/2 Inch Depth x 3-3/4 Inch Height
Material Bi-Metal
Differential Temperature Rating 2 Deg F
Terminal Designation R, W
Includes Switching Sub-Base
White Rodgers 1C20-102 - Single-Stage Snap-Action Low voltage room thermostat
Thermostat
Type Mechanical, Adjustable Heat Anticipator, 1-Heat, 1-Stage
Cover Type Vertical
Voltage Rating 24 Volt AC at 50/60 Hertz
Current Rating 0.15 to 1.2 Amp
Switch Type Snap Action
Temperature Rating 50 to 90 Deg F
Size 2-7/8 Inch Width x 1-1/2 Inch Depth x 3-3/4 Inch Height
Material Bi-Metal
Differential Temperature Rating 2 Deg F
Terminal Designation R, W
Includes Switching Sub-Base
