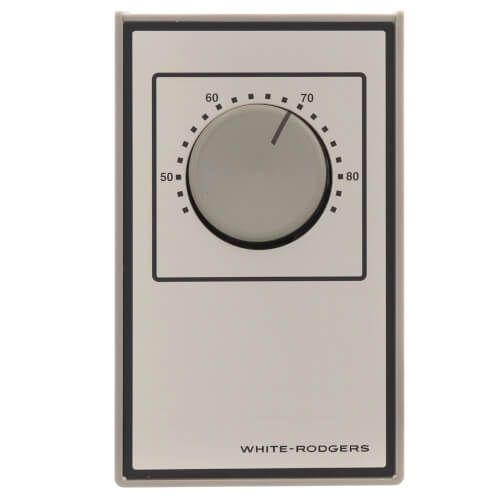

White Rodgers 1A65-641 - Beige Line Voltage Wall Thermostat, SPST, Open On Rise (No Thermometer)
Brand:
SKU
1A65-641
Thermostat
Type Line Voltage
Cover Type Vertical
Color Beige
Voltage Rating 120/240/277 Volt AC
Current Rating 22 Amp at 120/240 Volt AC, 18 Amp at 277 Volt AC (Resistive)
Power Rating 2500 Watt at 120 Volt AC, 5000 Watt at 240/277 Volt AC (Resistive)
Switch Type Open-On-Rise
Temperature Rating 40 to 85 Deg F
Size 2-3/4 Inch Width x 1-1/4 Inch Depth x 4-1/2 Inch Height
Approval UL, CSA
Differential Temperature Rating 1 Deg F
Application Controlling Baseboard, Cable Heat, Glass Panel
