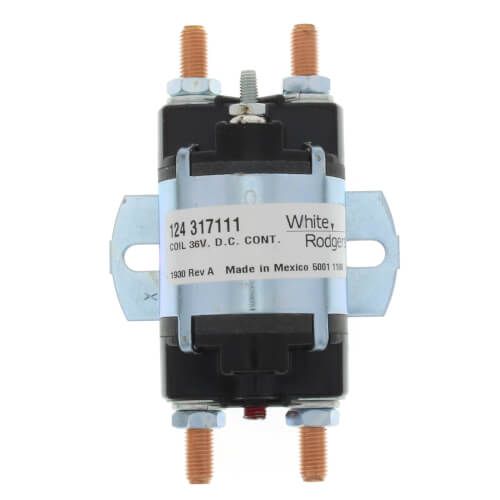

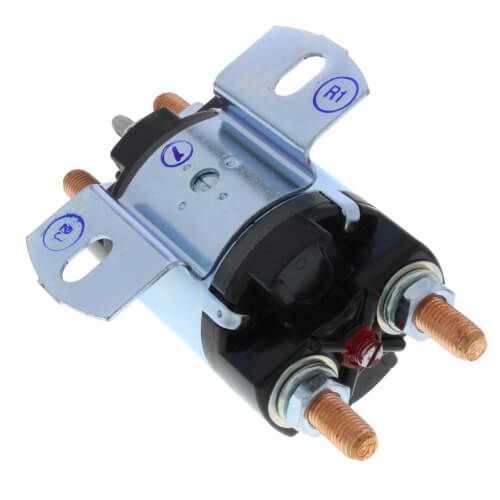

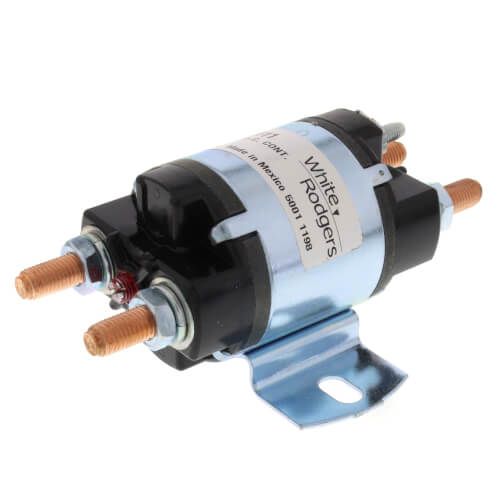

White Rodgers 124-317111 - Solenoid, SPDT (36 VDC Isolated Coil), Continuous Duty, Contact Rating 100 Amps, Inrush 400 Amps
Brand:
SKU
124-317111
Application: Heating
Voltage: 36 VDC
Duty: Continuous
Continuous Resistance: 120 ohms
Temperature Range (F): -40°F to 149°F
Type: SPDT
Mount: Vertical
Coil Termination: Isolated
Contact Terminal: 60 inch-lbs max
Coil Terminal: 12-18 inch-lbs Torque
White Rodgers 124-317111 - Solenoid, SPDT (36 VDC Isolated Coil), Continuous Duty, Contact Rating 100 Amps, Inrush 400 Amps
Application: Heating
Voltage: 36 VDC
Duty: Continuous
Continuous Resistance: 120 ohms
Temperature Range (F): -40°F to 149°F
Type: SPDT
Mount: Vertical
Coil Termination: Isolated
Contact Terminal: 60 inch-lbs max
Coil Terminal: 12-18 inch-lbs Torque
