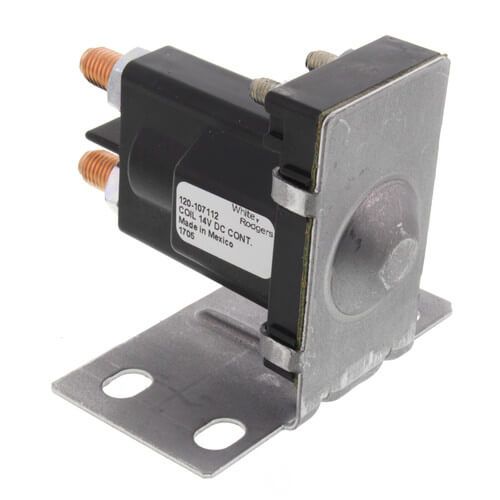

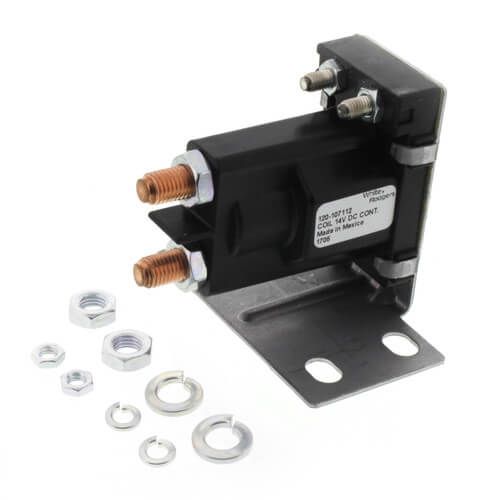

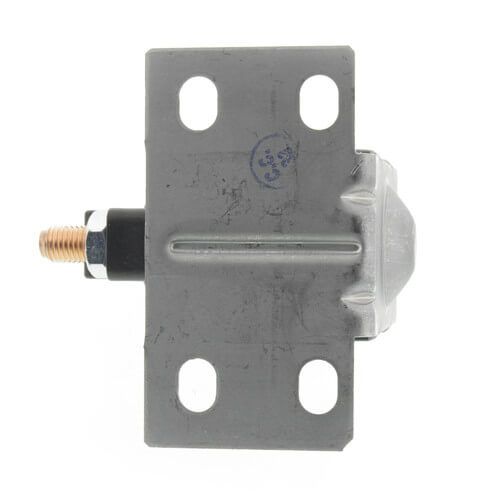

White Rodgers 120-107112 - Solenoid w/ Continuous Duty, Normally Open Continuous Contact Rating 100 Amps (14 VDC Isolated Coil)
Brand:
SKU
120-107112
Description:
Solenoid SPNO, 14 VDC Isolated Coil
Features:
Continuous Duty
Normally Open Continuous Contact Rating 100 Amps
Inrush 400 Amps
Application: Heating
Voltage: 14 VDC
Duty: Continuous
Intermittent Resistance: 26 ohms
Temperature Range (F): -20°F to 155°F
Type: SPNO
Mount: Vertical, Horizontal
Coil Termination: Isolated w/ #10-32 terminal
Contact Terminal: 45-55 inch-lbs Torque
Coil Terminal: 12-18 inch-lbs Torque
Position: Normally Open
