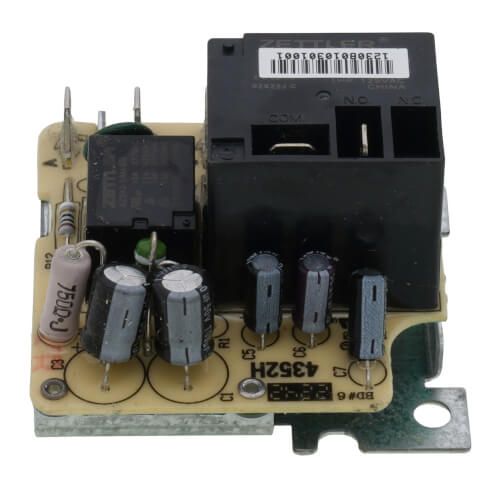

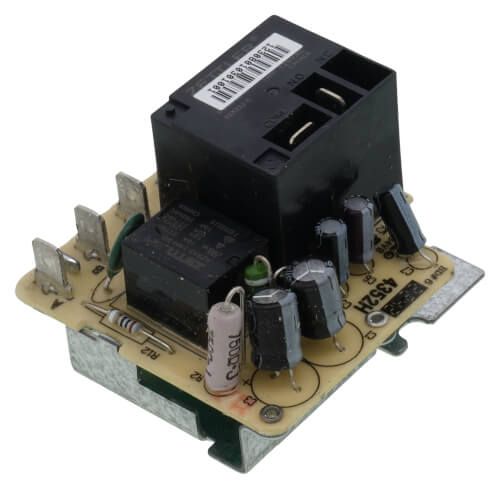

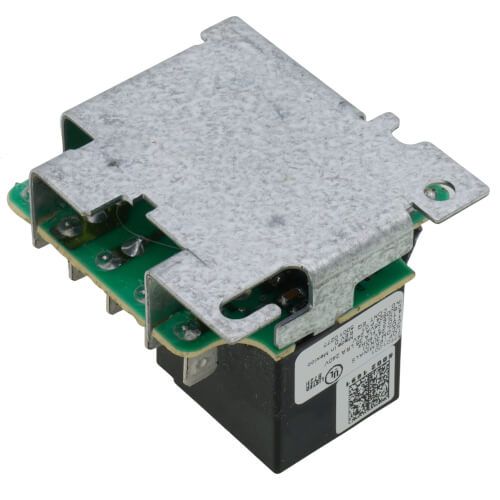

Trane RLY02807 - Time Delay Relay (American Standard)
Brand:
SKU
RLY02807
Time Delay Relay
Type AC Operated
Contact Voltage Rating 25 Volt Amp at 24 Volt AC (Pilot Pole)
Contact Current Rating 7 Amp (Full Load), 36 Amp (Rated Load)
Coil Voltage 24 Volt AC
Timing Range 2 Second
Timing Mode On-Delay
Horsepower Rating 3/4 HP (UL Approved)
Pilot Duty Pole 25 Volt at 24 Volt Amp
Total Power Consumption 0.5 Volt Amp (Relay De-Energized), 4 Volt Amp (Relay Energized)
FLA Rating 7 Amp
Includes PC Board
