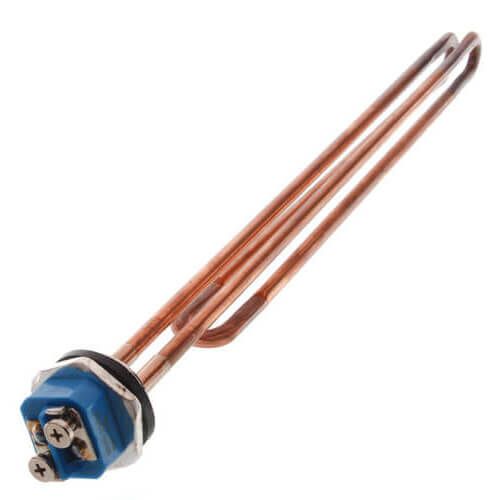

Rheem SP10552ML - 1" 4500W Copper Resistored Screw-in Element MWD (240V)
Brand:
SKU
SP10552ML
1" 4500W Copper Resistored Screw-in Element MWD (240V)
Watt Density Classification: MWD
Input Voltage (V): 208
Input Voltage (V): 240
Wattage at 208V (W): 3380
Watt Density at 208V (W/sq. in.): 84
Wattage at 240V (W): 4500
Watt Density at 240V (W/sq. in. ): 112
Cold Resistance (ohms): 12.80
Outer Sheath Material: Copper
Resistored: Yes
Configuration: Foldback
Element Diameter (in.): .260
Element Length - Flange to Tip (in.): 13.81
Mounting Type: Threaded
Actual Thread Size - Outside Diameter (in.): 1-9/32
Nominal Thread Size - (in.): 1
Threads per Inch: 11-1/2
Thread Type Series Designation: NPSM
Hex Head Size - Across Flats (in.): 1-1/2
Type: Element
Wattage: 4500
Voltage: 240v
Material: Copper
