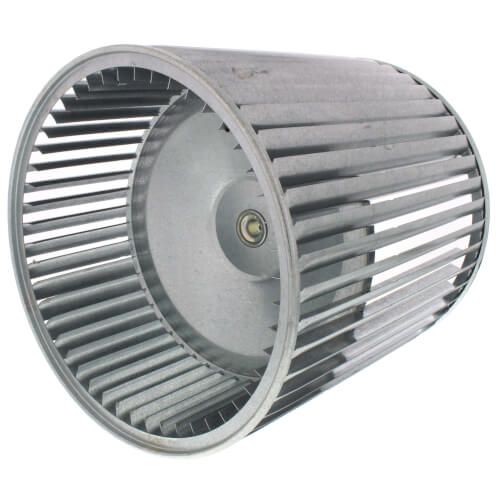

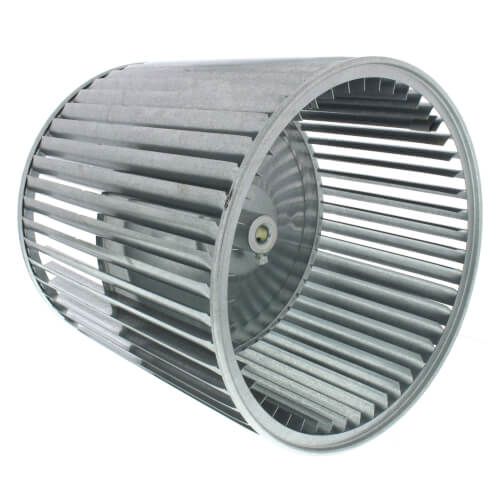

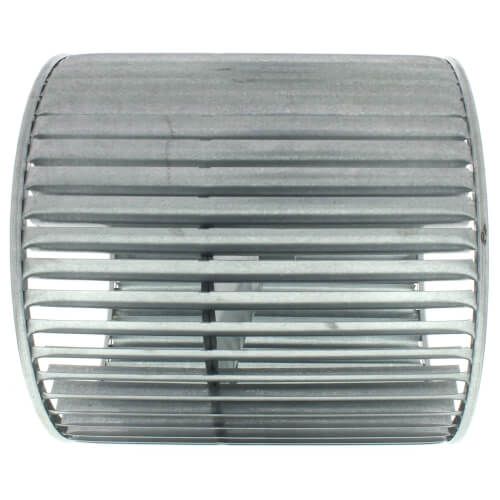

Rheem 703023 - 10" x 10" Blower Wheel CW (1/2" Bore)
Brand:
SKU
703023
Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 4-11/32
Disc Shape (Hub side): Convex
Hub Length Dim. B (in.): 1-1/8
Keyway (in.): None
No. of Blades: 48
No. Set Screws: 1
Nominal Hub Bore Shaft Size Dim. E (in.): 1/2
Nominal Size (in.): 10x10
Outside Edge of Disc to Outside End of Hub Dim. A (in.): 2

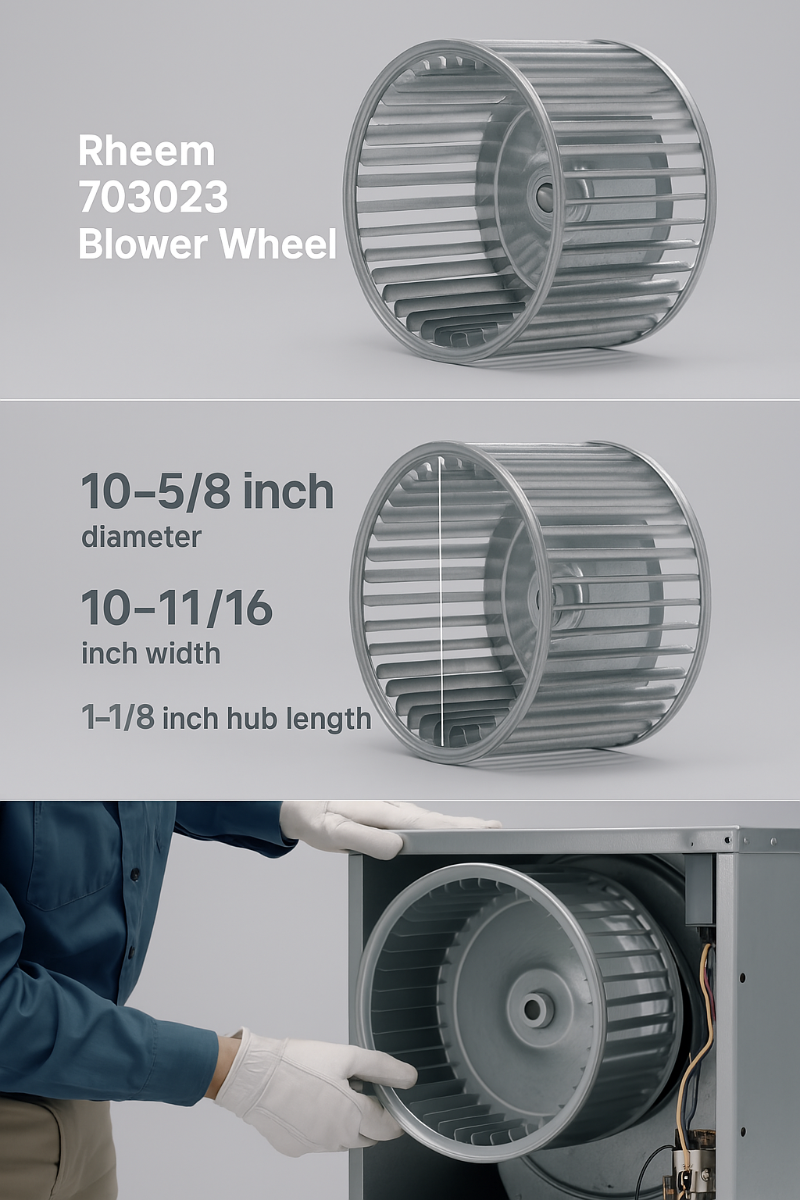

Overall Diameter Dim. D (in.): 10-5/8
Overall Width Dim. W (in.): 10-11/16
Rotation Direction (Facing Hub): CW
