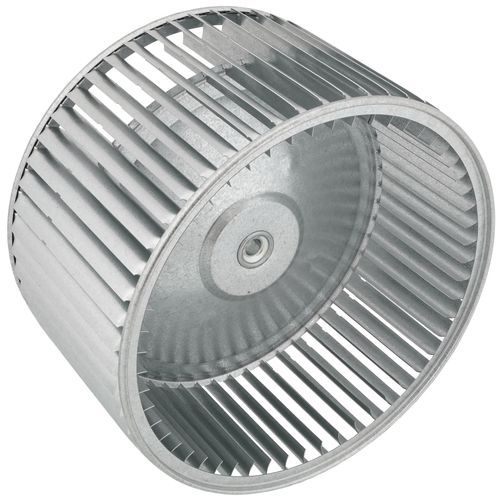

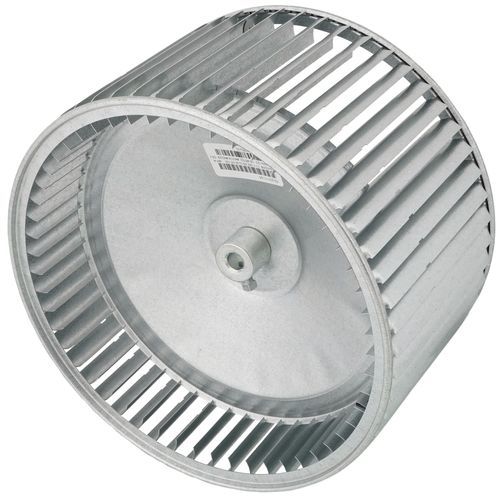

Rheem 70-23111-05 - 11" x 7" CW Wheel (1/2" Bore)
Brand:
SKU
70-23111-05
Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 4-9/16
Disc Shape (Hub side): Concave
Hub Length Dim. B (in.): 1-3/16
Keyway (in.): None
No. of Blades: 54
No. Set Screws: 1
Nominal Hub Bore Shaft Size Dim. E (in.): 1/2
Nominal Size (in.): 11 x 7
Outside Edge of Disc to Outside End of Hub Dim. A (in.): 1/8
Overall Diameter Dim. D (in.): 11-15/16
Overall Width Dim. W (in.): 7-1/8
Rotation Direction (Facing Hub): CW
Shipping Weight Actual (lbs.): 6.88
Shipping Weight Dimensional (lbs.): 12.91
Shipping Height (in.): 14.35
Shipping Length (in.): 15.30
Shipping Width (in.): 14.70
