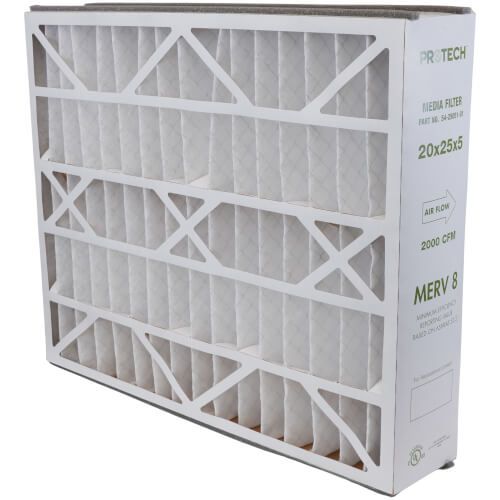

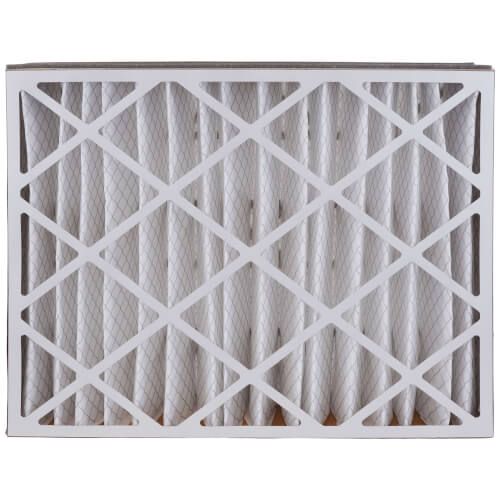

Rheem 54-25051-01 - PROTECH MERV 8 Media Filter Replacement - 5" x 20" x 25"
Brand:
SKU
54-25051-01
Installation Location: Filter Cabinet
Media Dimensions - Actual Length (in.): 24-1/4
Media Dimensions - Actual Thickness (in.): 5
Media Dimensions - Actual Width (in.): 19-3/4
Media Dimensions - Nominal Length (in.): 25
Media Dimensions - Nominal Thickness (in.): 5
Media Dimensions - Nominal Width (in.): 20
MERV Rating: 8
Pressure Drop at 1000 CFM (in. W.C.): 0.07
Pressure Drop at 1200 CFM (in. W.C.): 0.10
Pressure Drop at 1400 CFM (in. W.C.): 0.14
Pressure Drop at 1600 CFM (in. W.C.): 0.18
Pressure Drop at 1800 CFM (in. W.C.): 0.22
Pressure Drop at 2000 CFM (in. W.C.): 0.27
Pressure Drop at 600 CFM (in. W.C.): 0.03
Pressure Drop at 800 CFM (in. W.C.): 0.05
Rated Air Flow (CFM): 2000
Shipping Weight Actual (lbs.): 2.82
Shipping Weight Dimensional (lbs.): 2.82
Shipping Height (in.): 5.37
Shipping Length (in.): 8.73
Shipping Width (in.): 7.30
