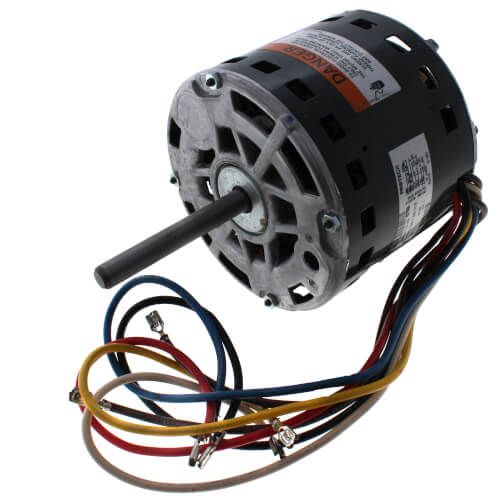

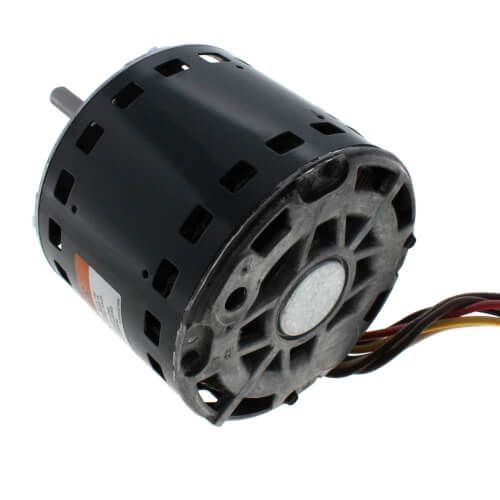

Rheem 51-24070-02 - 1/2 HP 1075RPM 4-Speed 48 Motor (120V)
Brand:
SKU
51-24070-02
Blower Motor
Power Rating 1/2 HP
Voltage Rating 120 Volt AC 1-Phase
Frequency Rating 60 Hertz
Motor FLA 7.1 Amp at 120 Volt
Number of Speeds 4
Speed Rating 1075 RPM
NEMA Frame Size 48
Mounting Shell-Band/Shell-Screw
Application Gas Furnace
Bearing Type Sleeve
Drive Type Direct Drive
Rotation Counter Clockwise
Overall Motor Length 8-5/16 Inch
Motor Body Size 5-5/8 Inch Diameter x 4-3/4 Inch Length
Shaft Size 1/2 Inch Diameter x 3 Inch Length
Capacitance 7.5 Microfarad at 370 Volt
Shipping Weight Actual (lbs.): 13.04
Shipping Weight Dimensional (lbs.): 13.04
Shipping Height (in.): 7
Shipping Length (in.): 21.45
Shipping Width (in.): 7.40
