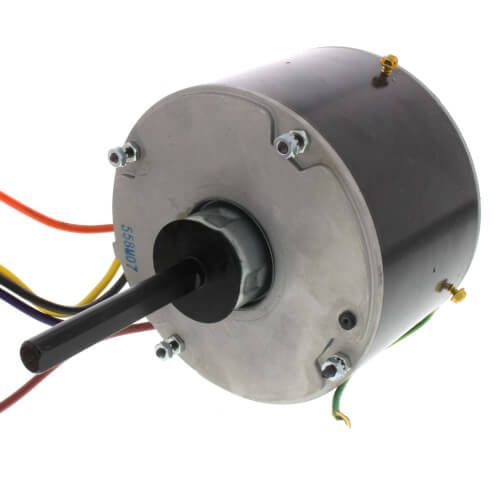

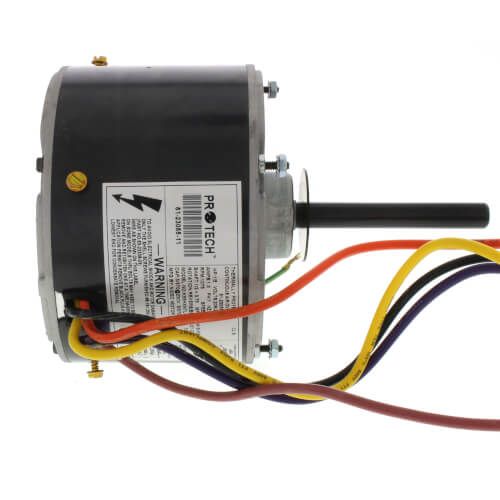

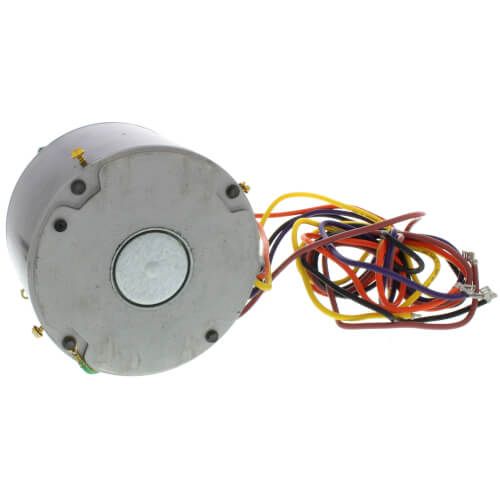

Rheem 51-23055-11- 1/5 HP 1075 RPM Motor (208-230V)
Brand:
SKU
51-23055-11
Condenser Motor
Power Rating 1/5 HP
Voltage Rating 208 to 230 Volt AC 1-Phase
Frequency Rating 60 Hertz
Motor FLA 1.3 Amp at 230 Volt
Number of Speeds 1
Speed Rating 1075 RPM
Reversible Yes
NEMA Frame Size 48
Mounting Shell-Band/Shell-Screw/Thru-Bolt
Application Condenser
Bearing Type Sleeve
Drive Type Direct Drive
Overall Motor Length 7-13/16 Inch
Motor Body Size 5-5/8 Inch Diameter x 3-9/16 Inch Length
Shaft Size 1/2 Inch Diameter x 4-1/4 Inch Length
Capacitance 3/5 Microfarad at 370 Volt
