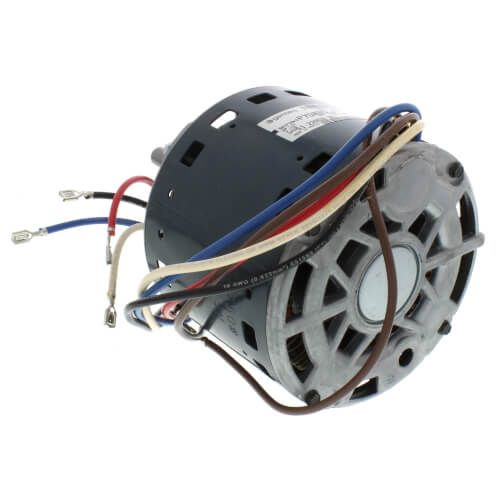

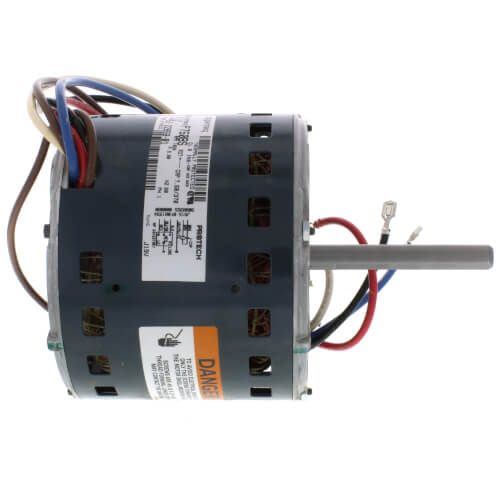

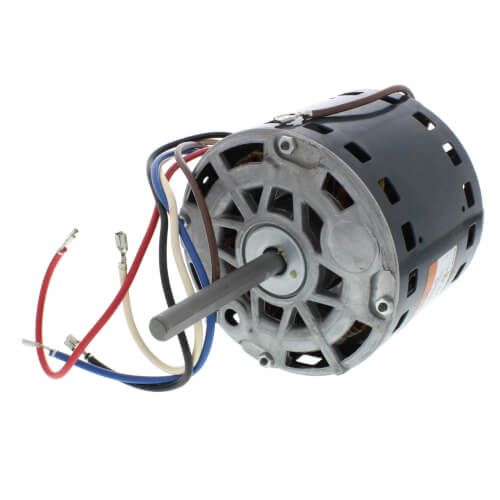

Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)
Brand:
SKU
51-22858-01
Blower Motor
Power Rating 1/2 HP
Voltage Rating 120 Volt AC 1-Phase
Frequency Rating 60 Hertz
Motor FLA 5.8 Amp at 120 Volt
Number of Speeds 3
Speed Rating 1075 RPM
Mounting Shell-Band/Shell-Screw
Application Gas Furnace
Bearing Type Sleeve
Drive Type Direct Drive
Rotation Counter Clockwise
Overall Motor Length 8-1/4 Inch
Motor Body Size 5-5/8 Inch Diameter x 4-3/4 Inch Length
Shaft Size 1/2 Inch Diameter x 3-1/2 Inch Length
Capacitance 7.5 Microfarad at 370 Volt
