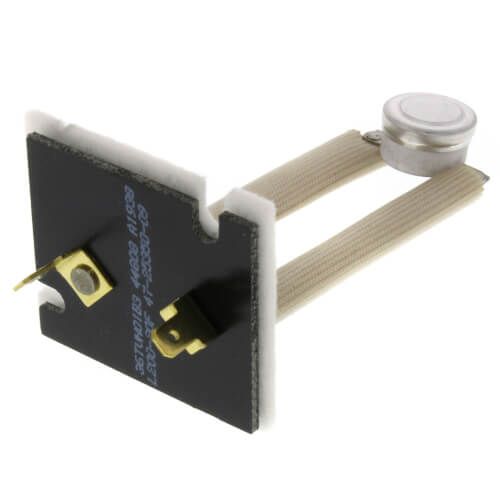

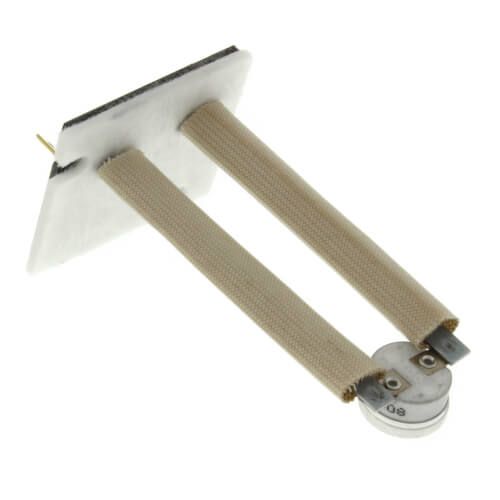

Rheem 47-25350-09 - SPST N/C Auto Reset Limit 200 Open 180 Close
Brand:
SKU
47-25350-09
Temperature Control Limit Switch
Type Board Mount, 60 Degree Strap Angle, Auto Reset
Temperature Range 200 Deg F (Open), 180 Deg F (Close)
Contact Rating 120/230 Volt AC, 15/10 Amp
Contact Configuration SPST, NC
Connection Type 1/4 Inch Quick Connect
Application Gas Furnace
Disc Face Type Enclosed
Mounting Insertion Depth 3 Inch
Mounting Board Size 1-3/4 Inch x 1-9/16 Inch
Temperature Tolerance +/-5 (Open), +/-7 (Close)
Color Code Tan
Rheem 47-25350-09 - SPST N/C Auto Reset Limit 200 Open 180 Close
Temperature Control Limit Switch
Type Board Mount, 60 Degree Strap Angle, Auto Reset
Temperature Range 200 Deg F (Open), 180 Deg F (Close)
Contact Rating 120/230 Volt AC, 15/10 Amp
Contact Configuration SPST, NC
Connection Type 1/4 Inch Quick Connect
Application Gas Furnace
Disc Face Type Enclosed
Mounting Insertion Depth 3 Inch
Mounting Board Size 1-3/4 Inch x 1-9/16 Inch
Temperature Tolerance +/-5 (Open), +/-7 (Close)
Color Code Tan
