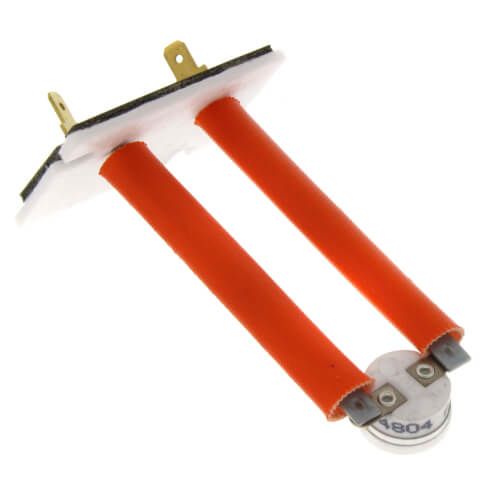

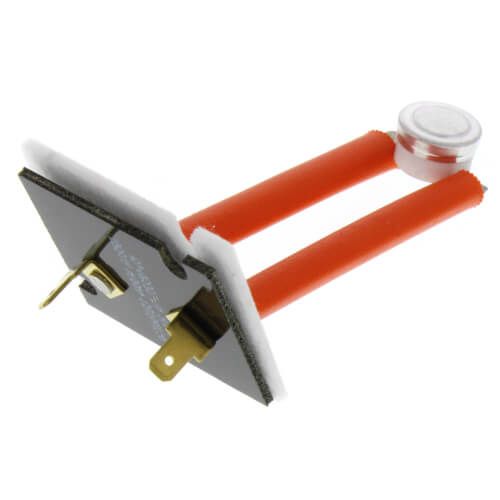

Rheem 47-25350-05 - Limit Switch - Normally Closed, Close At 140F, Open At 160F, Auto Reset, 120 / 230VAC
Brand:
SKU
47-25350-05
Category: General Purpose
Close Temperature (F): 140
Color Code: Orange/Orange
Connections: 1/4 in. Quick Connects
Contact Orientation: Normally Closed
Disc Face: Enclosed
Maximum Current Rating (A): 15 / 10
Maximum Voltage Rating (VAC): 120 / 230
Mounting Board Dimensions (in.): 1-3/4 x 1-9/16
Mounting Insertion Depth - Maximum (in.): 3
Mounting: Board Mount - 60 degree strap angle
No. of Poles: 1
Nominal Temperature Difference (F): 20
Open Temperature (F): 160
Reset Mode: Auto
Switch Type: SPST
TOD Switch Series: 36T
Tolerance Close Temperature (F): +/-7
Tolerance Open Temperature (F): +/-5
Shipping Weight Actual (lbs.): 0.08
Shipping Weight Dimensional (lbs.): 0.14
Shipping Height (in.): 2.10
Shipping Length (in.): 5.45
Shipping Width (in.): 3.05
