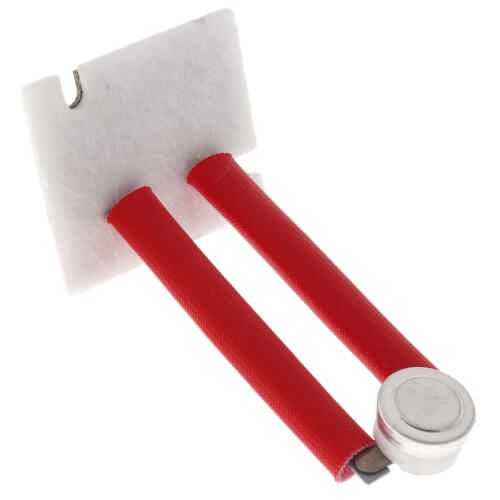

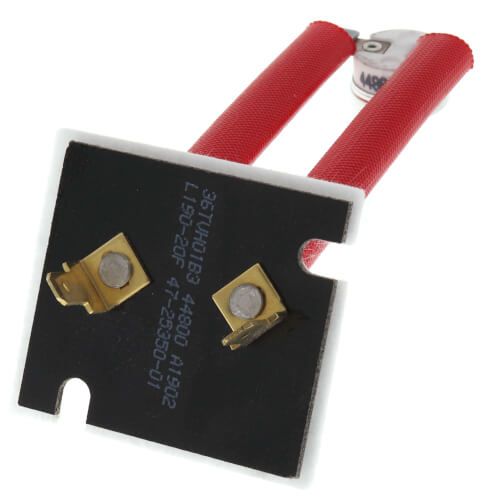

Rheem 47-25350-01 - SPST N/C A/R Limit (190 Open 170 Close)
Brand:
SKU
47-25350-01
Temperature Control Limit Switch
Type Board Mount, 60 Degree Strap Angle, Auto Reset
Temperature Range 190 Deg F (Open), 170 Deg F (Close)
Contact Rating 120/230 Volt AC, 15/10 Amp
Contact Configuration SPST, NC
Connection Type 1/4 Inch Quick Connect
Application Gas Furnace
Disc Face Type Enclosed
Mounting Insertion Depth 3 Inch
Mounting Board Size 1-3/4 Inch x 1-9/16 Inch
Temperature Tolerance +/-5 (Open), +/-7 (Close)
Color Code Red
Rheem 47-25350-01 - SPST N/C A/R Limit (190 Open 170 Close)
Temperature Control Limit Switch
Type Board Mount, 60 Degree Strap Angle, Auto Reset
Temperature Range 190 Deg F (Open), 170 Deg F (Close)
Contact Rating 120/230 Volt AC, 15/10 Amp
Contact Configuration SPST, NC
Connection Type 1/4 Inch Quick Connect
Application Gas Furnace
Disc Face Type Enclosed
Mounting Insertion Depth 3 Inch
Mounting Board Size 1-3/4 Inch x 1-9/16 Inch
Temperature Tolerance +/-5 (Open), +/-7 (Close)
Color Code Red
