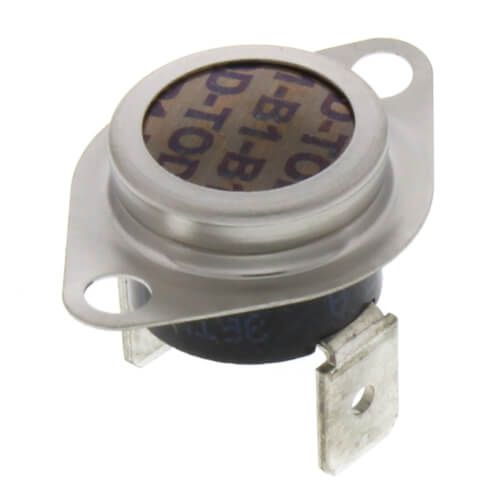

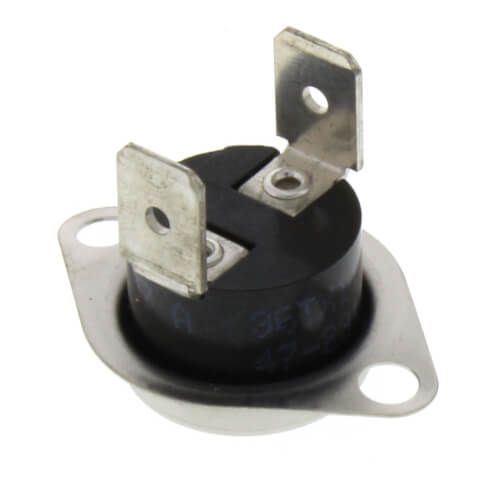

Rheem 47-23118-01 - SPST N/C A/R Limit (85 Open 70 Close)
Brand:
SKU
47-23118-01
Temperature Control Limit Switch
Type Small Flanged Airstream, Auto Reset
Temperature Range 85 Deg F (Open), 70 Deg F (Close)
Contact Rating 120/230 Volt AC, 15/10 Amp
Contact Configuration SPST, NC
Connection Type 1/4 Inch Quick Connect
Application Air Handler
Disc Face Type Open
Mounting Insertion Depth 3/16 Inch
Temperature Tolerance +/-5 Deg F (Open), +/- 6 Deg F (Close)
Rheem 47-23118-01 - SPST N/C A/R Limit (85 Open 70 Close)
Temperature Control Limit Switch
Type Small Flanged Airstream, Auto Reset
Temperature Range 85 Deg F (Open), 70 Deg F (Close)
Contact Rating 120/230 Volt AC, 15/10 Amp
Contact Configuration SPST, NC
Connection Type 1/4 Inch Quick Connect
Application Air Handler
Disc Face Type Open
Mounting Insertion Depth 3/16 Inch
Temperature Tolerance +/-5 Deg F (Open), +/- 6 Deg F (Close)
